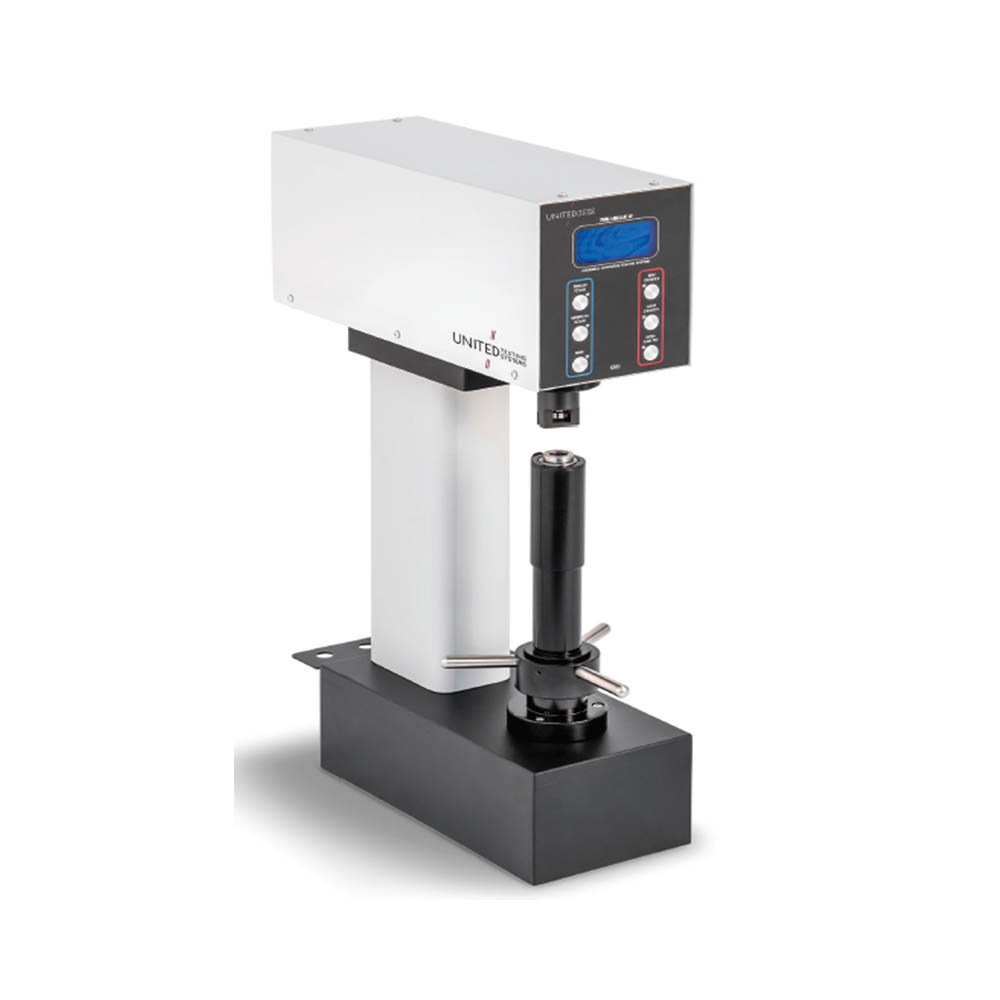

Tru-Blue II Hardness Tester
United’s TRU-BLUE II Rockwell Hardness Tester uses the latest electronic controls, coupled with high-precision load cells to provide highly accurate penetration measurement data.
SKU: TB-II/10
Brand: United Testing
Applications: Hardness Testing, Materials Testing, Rockwell Hardness Testing
Industries: Aerospace, Automotive, Beverage, Construction & Civil Engineering, Defense, Education, Electronics, Industrial, Medical Devices, Metal Packaging, Pharmaceutical
Standards: ASTM E-18, ISO 6508
The True Blue II Hardness Tester is used in many NADCAP approved facilities including heat treaters, fastener manufacturers, and fabricators.
Available in test heights from 10”, 14”, 18” and 20″.
Meets all NIST, ISO, CE, ASTM requirements.
15 Regular scales: A, B, C, D, E, F, G, H, K, L, M, N, P, S, V
15 Superficial scales: 15N, 30N, 45N, 15T, 30T, 45T, 15W, 30W, 45W, 15X, 30X, 45X. 15Y, 30Y, 45Y
Display statistics: Avg, Range, Min/Max, Std deviation and Number of tests
Throat depth: 5.5 in. (standard)
Meets ASTM E-18 and ISO 6508 requirements.
Description
Item: TB-II-H10-D5.5
Vertical Capacity: 10″
Throat Depth: 5.5″
Closed loop: control of test cycle
Application: of force measured via Load Cell
Test: 5 preset test dwell times in accordance with ASTM E-18
Warranty: 2-Year factory Warranty
Certified: CE Certified
Spec: 110 or 220VAC 50/60 Hz 1 Phase, 1 Amp
DIMENSIONS: 8″W x 20″D x 33.5″H
WEIGHT: 185 lbs. (84 Kg)
