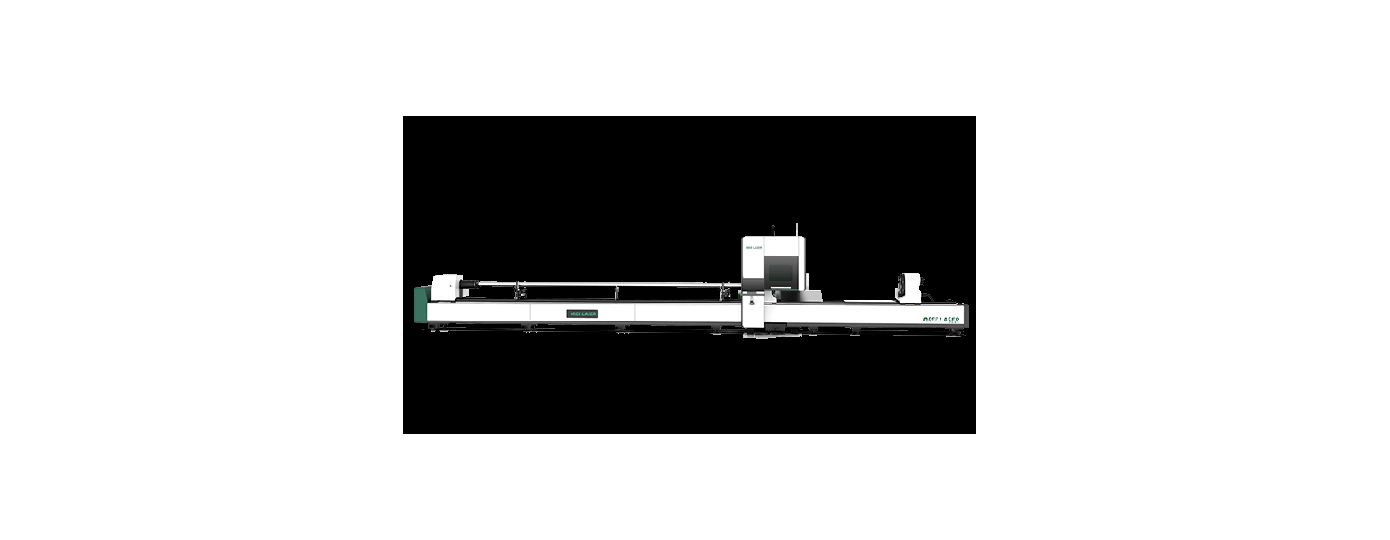

Three-chuck tube fiber laser cutting machine OR-TS
Three chucks clamping & zero tail materials
Three chucks clamping & zero tail materials Innovative three-chuck clamping technology, the chuck clamping force is adaptive to the pipe, realize accurately clamped; The casting integrated chuck base improves the overall stability of the chuck and achieves high-precision positioning cutting; The three chucks operate in coordination, after the chuck through the middle chuck internal cutting operati
Wide range of pipe cutting
It supports the processing of 12000mm ultra-long whole workpiece, channel steel, angle steel, I-beam and other profiles, and the maximum load-bearing capacity of a single pipe is 900KG.
Double-sided follow-up support device
It can reduce processing errors, ensure uniform force on the entire metal pipe, and improve cutting accuracy. Real-time feeding to prevent the reduction of cutting accuracy due to pipe distortion.
Integrated frame bed design
The integrated processing technology of high-precision gantry machine tool, through furnace annealing and aging treatment, the stability and cutting precision of the bed are greatly improved and the service life of the bed is prolonged.
3D tube nesting software TubesT, meet your production needs
TubesT is a 3D tube nesting software for the TS series. From parts drawing and modification, full type compensation, strategic nesting to report generation, using TubesT will meet and exceed your production needs.
