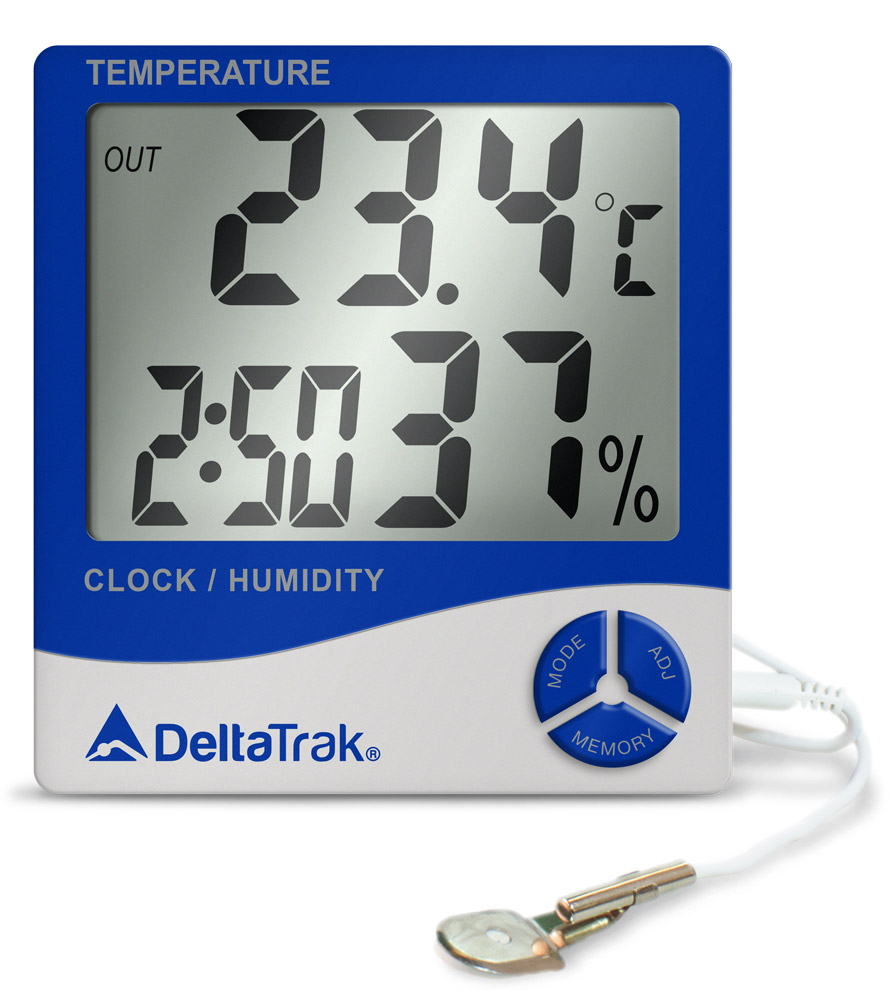

Thermohygrometer Model 13309
The Model 13309 Giant Display Thermo-Hygrometer monitors temperature and relative humidity in storage and production areas, cold rooms, hospitals, pharmacies, blood banks, clean rooms, greenhouses, live animal production such as chicken coops, and hatcheries. This thermo-hygrometer features a large LCD display, °F/°C switchable, stores and recalls min/max readings, has an option to set daily and hourly alarms. The external thermistor sensor with an extension cable features a probe holder for secure placement.
- Internal temperature and humidity sensors
- external temperature probe
- Self-adhesive backed probe holder
- °C/°F selectable
- Jumbo display of temperature, humidity, time and date
- Min/Max Memory – Lowest and highest readings stored for instant recall
- Alarm clock and hourly chime
Applications: storage and production areas, ripening rooms, greenhouses, live animal production, pharmacies, clean rooms and more.
Description
| Feature | Specification |
|---|---|
| DeltaTrak manufactures products under an ISO 9001:2015 registered quality management system | |
| Temperature Range | Internal: 14°F to 122°F (-10°C to 50°C) External Probe: -58°F to 158°F (-50°C to 70°C) |
| Humidity Range | Internal: 10% to 99% |
| Operating Range | 14°F to 122°F (-10°C to 50°C) |
| Humidity Accuracy (Internal) | ±5% R.H. from 40% to 70% R.H. at 77°F~86°F (25°C~30°C) |
| Temperature Accuracy (Internal & External) | ±1.8°F (1°C) from 32°F to 104°F (0°C to 40°C) |
| External Temperature Sensor | Cable length: 6.56 ft / 2 meters; Probe: 20mm L x 4mm Diameter |
| Resolution | R.H.1%, temperature 0.1°F /°C |
| Display Window Size | 3.15in. W x 2.36in. H (80mm W x 60mm H) |
| Character Height within Display | 1.02in (26mm) – Temperature & Humidity 0.87in (22mm) – Date & Time |
| Product Size | 3.74in. W x 4.02in. H x 0.75 in. D (95mm W x 102mm H x 19mm D) |
| Weight | 4.18 oz. (118.4 g) |
| Body Casing | Polycarbonate and ABS plastic |
| Sensor Type | Temperature: thermistor Humidity: electronic resistive |
| Battery | AAA (quantity 1 each) |
| Certification / Calibration | CE mark, NIST traceable calibration certificate |
