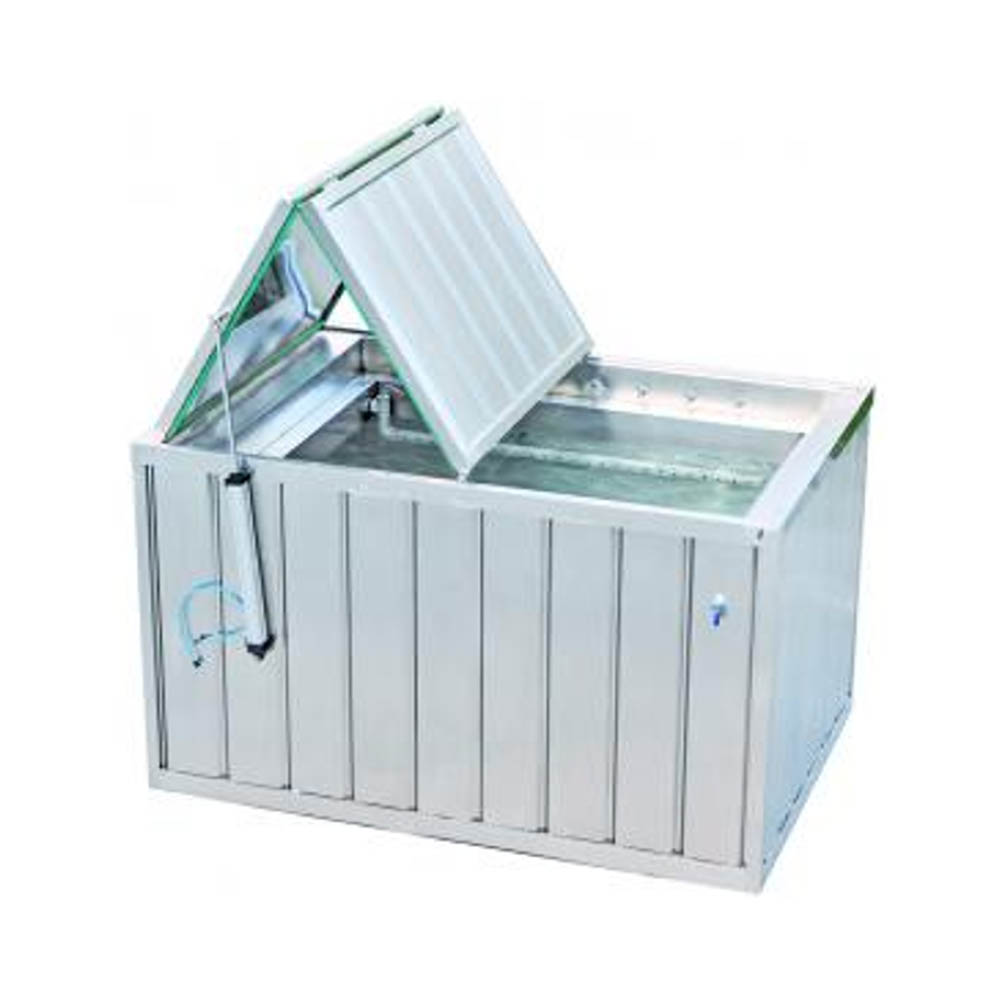

Thermal Tank
Optimal material selection. Inner container, outer protection plate as well as the lid are made of highquality stainless steel. Further, all the components that come in contact with medium are also made of high-quality stainless steel.
Thermal Tank is constructed with the heavy section steel frame providing an extremely rigid performance.
Optimized heating capacity and excellent thermal insulation reduced energy consumption rate. Even when the water temperature reaches 95℃, the outer cover will still stay at room temperature. It helps to enhance the security and save more than 70% of power consumption.
Unique steam collection device keeps steam and heat in the test tank and protect against injury.
Automatic water filling design ensures full tank capacity during the whole time.
Lids are opened by hydraulics and opening degree can be adjusted up on operator’s requirements.
Quick couplings simplify the connection of the test specimens.
Outer protection plates can be removed to access serviceable parts such as circulation pump, heating elements etc. Service and maintenance can be performed when the tank is filled with water due to the unique design.
Description
| Temperature Range | RT℃ – 95℃ |
| Temperature Control Accuracy | ± 0.5℃ |
| Temperature Uniformity | ± 1℃ |
| Temperature Fluctuation | Less than 0.1℃ |
| During Automatic Level Compensation | |
| Lid Opening | Pneumatic Opening |
| Level Compensation | Automatic |
