Super heavy duty laser tube cutting machine OR-TR
Movable gantry structure
Horizontal bed layout, two-chuck design, low center of gravity, stable and solid; Movable gantry structure to meet the cutting needs of long workpieces and short tails
Larger range of pipe cutting

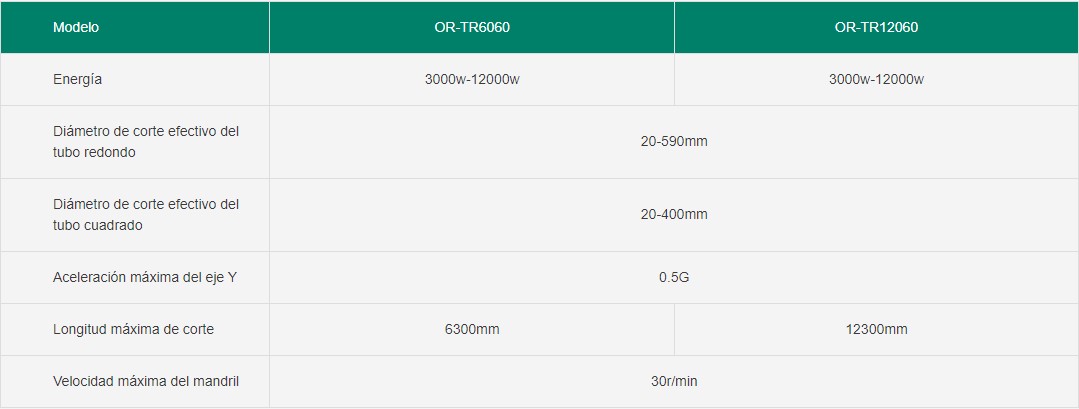

The maximum diameter of the processed pipe can reach 590mm, and the load can reach 1200kg; It is not limited to processing conventional pipes such as round pipes and square pipes, as well as profiles such as angle steel, channel steel and H-beam; Other special-shaped tubes such as drop-shaped, C-shaped, etc. can also be cut
Optional:Three-dimensional five-axis cutting head
Three-dimensional five-axis cutting head is optional, which can achieve a maximum 45° bevel cutting, and provide a professional heavy tube cutting solution.
Price competitive
Give full play to the advantages of simple and efficient two-chuck model, less cutting action, and high cost performance; Adjustable feeding support, easy to operate, effectively support the pipe; Follow-up blanking support, auxiliary blanking lifting table, improve cutting accuracy and facilitate blanking
Professional pipe EtherCAT bus system
Equipped with a professional pipe cutting bus system to achieve high-precision and high-quality processing.
1.Professional 3D nesting software;
2.Rich database of pipe cutting process;
3.Automatically generate reports and processing records;
4.The interface is simple, easy to learn and easy to understand, and the operation is efficient.
1.Professional 3D nesting software;
2.Rich database of pipe cutting process;
3.Automatically generate reports and processing records;
4.The interface is simple, easy to learn and easy to understand, and the operation is efficient.
Compact model
Small footprint, compared to the three-chuck and four-chuck pipe cutting machines on the market, the floor space is reduced by 30%; At the same time, the installation is simple, the disassembly and assembly are convenient, and it is convenient for customers to put into production quickly.
