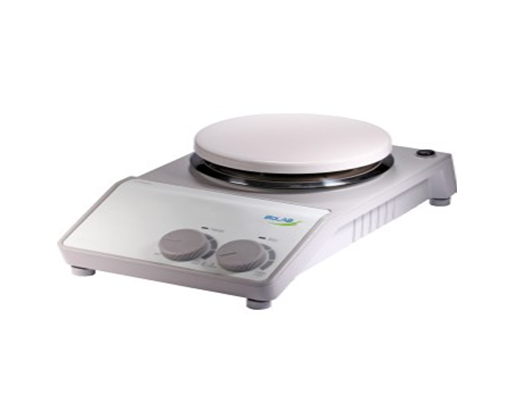

Stirrer
Compact, automatic and powerful hotplate magnetic stirrer has stainless steel material with a ceramic coating which prevents corrosion. It is available with external temperature sensor PT1000, timer, PC control. A warning sign is display when over-temperature. Timer can be set from 1min to 99h 59min. Used with a wide variety of accessories.
Description
| Capacity | 20 L |
| Stirring Positions | 1 |
| Speed Range | 0~1500 rpm |
| Temperature | RT~340°C |
| Permissible Ambient Temperature | 5-40°C |
| Safety Temperature | 350°C |
| Permissible Relative Humidity | 0.8 |
| Motor rating Input [W] | 18 |
| Motor rating output [W] | 10 |
| Heating Output | 500 W |
| Work Plate Size | 135 mm |
| Stirrer Dimension | 80 mm |
| Platform Material | Stainless steel with ceramic coating |
| Speed Display | Scale |
| Temperature Display | Scale |
| Motor Type | DC motor |
| Protection Class | IP42 |
| Overall Dimension | 160Wx280Dx85H mm |
| Weight | 2.8 kg |
| Power | 530 W |
| Power Supply | 100-120V/200-240V, 50/60Hz |
| ü Stainless steel with ceramic coated hotplate resists to corrosion ü Separated safety circuit, automatically stop heating when temperature over 350℃ ü Motor with electronic speed control, constant speed even during changes in load ü Variable speed of motor |
