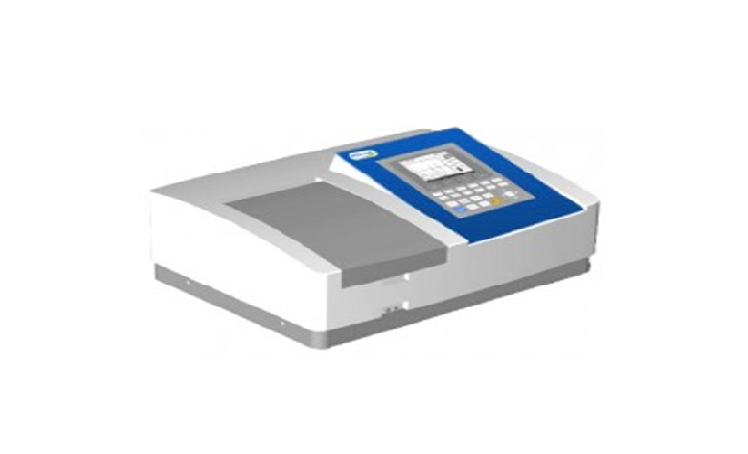

Spectrophotometer
Designed to conserve benchspace, our product offers the measurement range of 190-1100nm at bandwidth of 1.8nm and 2nm. Engineered for a wide range of applications, our systems provide dependable performance and reliable results. It produces the photometric range of -0.3 to 3 A; 0-200 %T and photometric accuracy of ±0.2%T which makes it suitable for various quantitative assays.
Description
| Wavelength Range | 190-1100 nm |
| Wavelength Accuracy | ±0.3 nm |
| Wavelength Repeatability | 0.2 nm |
| Spectral Bandwidth | 1 nm |
| Photometric Range | 0.200%T, -0.3-3.0A |
| Photometric Accuracy | ≤±0.3%T or ±0.002A at 1A |
| Stability | ±0.0005A/h at 500nm |
| Baseline Flatness | ±0.001A |
| Stray Light | 0.05%T at 220,360 nm |
| Light Source | Deuterium and Tungsten Halogen Lamp |
| Software | Optional PC software |
| Gross Dimension (W/D/H) | 600x450x200 mm |
| Display | LCD |
| Weight (Net/Gross) | 22 kg |
| Power Supply | 220V 60Hz |
| ü Wavelength range: 190-1100nm ü Spectral Bandwidth: 0.5, 1.0, 2.0, 4.0nm ü Fixed or variable bandwidth ü Stray Light: Stray light is achieved at ≤0.05%T at 220 nm and 360 nm |
