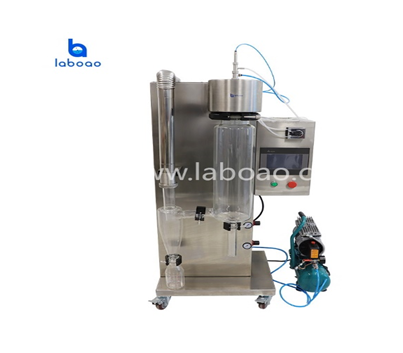

Small Lab Spray Dryer
Can produce a dry powder from a liquid or slurry by rapidly drying with a hot gas.
Description
| Model | LSP-1500 |
| Max. capacity | 1500-2000ml/h |
| Temperature range of Inlet air | 30℃ -280℃ |
| Temperature range of outlet air | 40℃ -120℃ |
| Precision of temperature | ± 1 ℃ |
| Dryer time | 1.0-1.5 S |
| Speed of squirmy pump | 30-2000ml/h, |
| Consume of dryer air | 0-330m3 /h, max pressure: 686Pa |
| Consume of spray air | 0-4.2m3 /h, spray pressure: 2-5bar |
| Spray system | 2 liquid nozzles with standard 0.7mm jet |
| options of 0.5/1.0/1.5/2.0/2.5mm | |
| Spray direction | downwards co-current |
| Power | 3.5KW 220V |
| Voltage | 220/240V-50/60HZ-13amps |
| Dimensions | 650×500×1550 ( mm ) L x W x H |
| Weight | 120kg |
