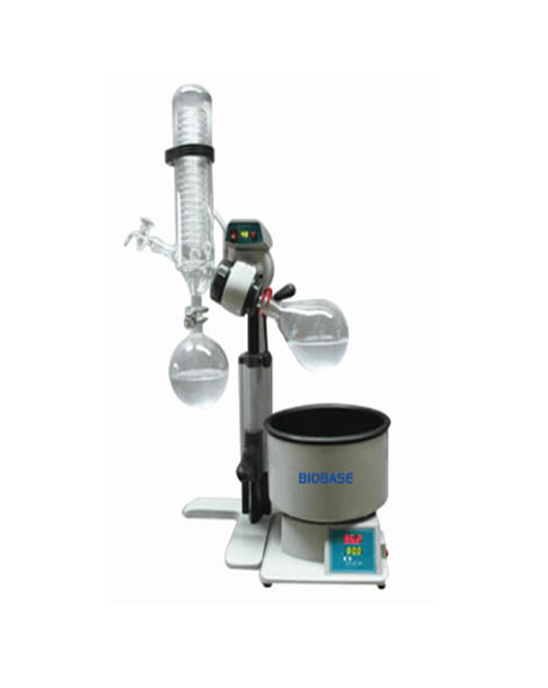

RE-2010 rotary Evaporator
Description
| Model | RE-2010 |
| Rotary Bottle | 1 L24#(standard size） |
| Collecting Bottle | 1 L35#( ball mill mouth) |
| Condenser | Vertical φ85*430mm |
| Charging Valve | 19#(standard size) |
| Rotating Speed | 20~195rpm |
| Vacuum | -0.098Mpa |
| Temp. Range | AT~99℃ |
| Temp. Accuracy | ±1℃ |
| Stroke Height | 100mm+150mm(sliding+ manual） |
| Rotary Motor | 40 W |
| HeatingPower | 1.5 KW |
| Water Evaporating Speed | 20 ml/min |
| Shelf Material | Aluminum alloy |
| Power Supply | AC220 V±10%,50 Hz |
| External Size(W*D*H) | 550*400*780~1040mm |
| Package Size(W*D*H) | 720*525*385mm |
| Gross Weight | 19Kg |
| Standard Accessory | 1 L Rotary Bottle*1, 1 L Collecting Bottle*1 |
| Optional Accessory | Rotary Bottle(500~3000ml),Vacuum pump, Inclined condenser, Recirculating chiller |
.
