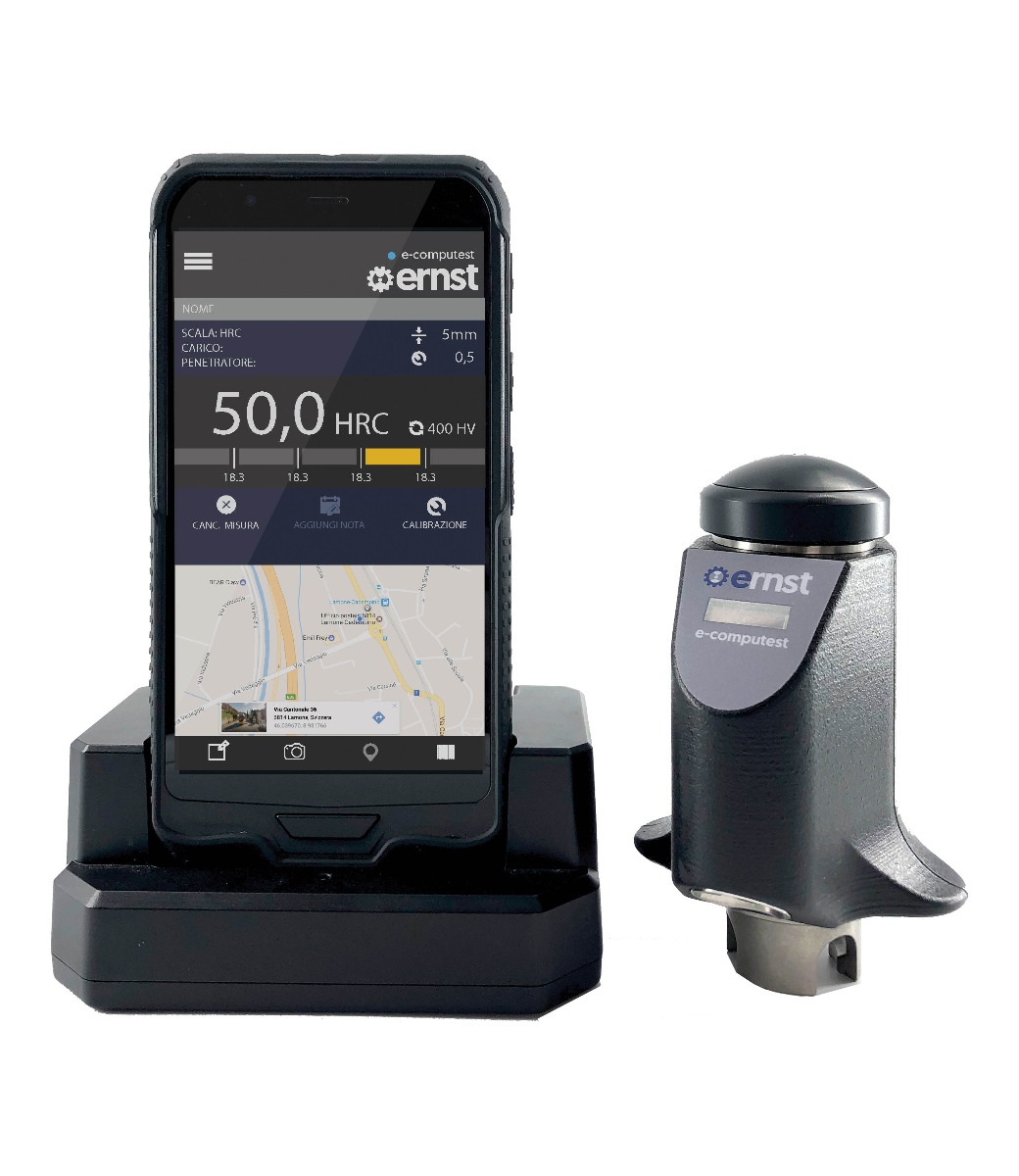

Portable hardness tester e-computest
Light force wireless portable hardness tester e-computest is a light force (5kgf) electronic hardness tester, which operates according to the Rockwell principle and allows the hardness of the entire range of ferrous and non-ferrous metals to be measured without changing the indenter. Simply select the desired scale and place the base of the instrument on the surface to be tested, preparing the test area accordingly. The measurement is obtained by exerting a manual pressure of 5 kgf with immediate display of the detected hardness value. The e-computest portable hardness tester can operate in different positions and is equipped with various support bases, easily interchangeable to adapt to the different shapes of the samples to be measured. In the new version e-computest uses a tablet suitable for the industrial environment. The Android application offers the possibility of detecting, managing, sharing, archiving and printing data in a simple and immediate way. In addition, e-computest can be used with a stand, specifically designed to perform tests of all those pieces where support is required and of small samples.
Description
| Power supply | 100 – 240 Volt |
| Loads | 5 kgf (49 N) |
| Norms and certifications | DIN 50157 ASTM E-18 indirect method on certified test block ISO 6506 indirect method on certified test block ISO 6507 indirect method on certified test block ISO 6508 indirect method on certified test block ACCREDIA CERTIFICATE on request |
| Minimum measurable diameter | 2 mm with stand 12 mm with base for rounds |
| Selectable functions | Scales, tollerances, calibration, test load, stats, language, sequence, files, materials, partial average, clock, auto off timer, add notes, barcode scanner, geo-localization |
| Output interfaces | Wifi, Bluetooth, micro USB, micro SD slot |
| Reading | Tablet display touch-screen 6″ |
| Languages | Italian, English, German, Other languages on request |
| Load application method | manual |
| Weight | Mechanical unit 750 g Electronical unit 360 g |
| Preload | 1,2 kgf (11.8 N) |
| Accuracy | HRC 0,3 HB < 1% |
| Working principle | Rockwell |
| Standard scales | HRC (0-70) HRB (0-120) HB30 (80-700) N/mm² (260-2300) kg/mm² (27-235) HV (35-1080) DPTH (0-100) |
| Load time | selectable 1 – 60 sec |
