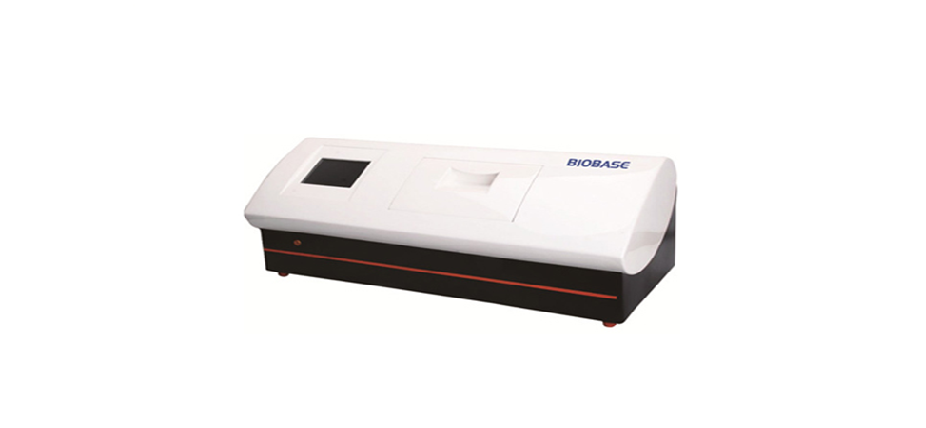

Polarimeter
Description
| Model | BK-P810 | BK-P810A | BK-P850 | BK-P850A |
| Light Source | LED lamp | |||
| Measuring Range | ±89.99°, 259°Z | |||
| Wavelength | 589.3nm | |||
| Readable Accuary | 0.001° | |||
| Measuring Accuracy | 0.02° | |||
| Repeatability | 0.002° | |||
| Sample Transmittance | >0.1% | |||
| Temp. Control Range | Built in Peltier, 15~30℃, ±0.3℃ | |||
| Test Model | Optical rotation, optical specific rotation, concentration, sugar scale Z | |||
| Display | 5.6’’ color touch screen | |||
| Data Storage Capacity | 1000sets | |||
| Interface | RS232 or USB; Excel format and “Blue Ocean” format | |||
| Power Consumption | 250W | |||
| Power Supply | AC220V±10% 50Hz | |||
| External Size(W*D*H) | 708*330*287mm | |||
| Package Size(W*D*H) | 840*455*445mm | |||
| Gross Weight | 30kg | 40kg | ||
| “ A” in BP-810A and BP-850A mean automatic calibrate optical rotation. | ||||
.
| Other related models | ||
| Digital Automatic Polarimeter • BK-P2S • BK-P2B |
Disc Polarimeter • BK-P4 • BK-P4L |
Automatic Polarimeter • BK-P1 • BK-P2 • BK-P3 |
