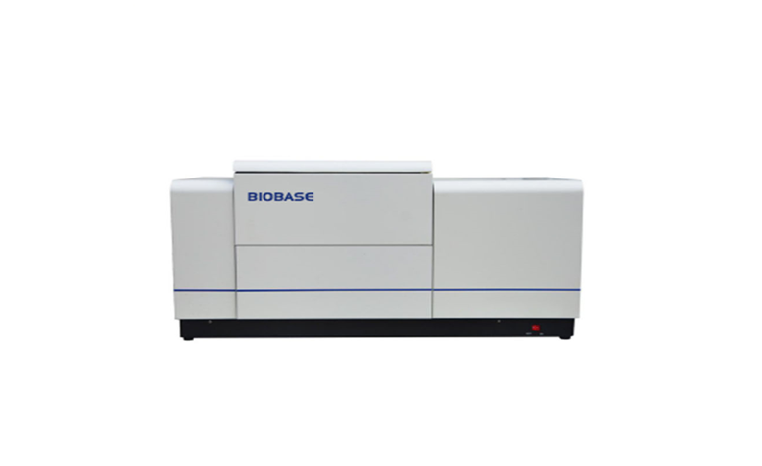

Particle Size Analyzer
Description
| Model Name | BK-2308C | |
| Principle | Laser scattering principle | |
| Measuring Range | Dry:0.1~1200 micron | |
| Wet:0.01~1200 micron | ||
| Channels Number | Dry:80 pcs | |
| Wet:97 pcs | ||
| Accuracy Error | <1% (Deviation of D50 on national standard sample) | |
| Repeatability Error | <1% (Deviation of D50 on national standard sample ) | |
| Light Source | He-Ne laser P>3.0 mw (λ= 632.8nm) life time>25000hours | |
| Auxiliary semiconductor laser (λ= 532 nm) P＞2.0mw | ||
| Wet Dispersion | Ultrasonic | Frequency: 40KHz |
| Power: 35w | ||
| Time: ≥1s | ||
| Agitator | Revolutions Speed: 0~3000rpm (Adjustable) | |
| Circulation | Rated Flow: 8L/min | |
| Rated Power:10w | ||
| Sample Tank | Volume: 350ml | |
| Operation Mode | Full automatic | |
| Optical Alignment | Automatic | |
| Data Acquisition Rate | 2KHz | |
| Test Speed | Wet: ＜2 Min per time | |
| Dry: <1min per time | ||
| Fastest measuring speed:10s | ||
| Operation Enviroment | Temperature: 10~40℃ | |
| humidity: 0~90% | ||
| Outer Dimension(L*W*H)mm | 920*440*500 | |
| Net Weight | 70Kg | |
