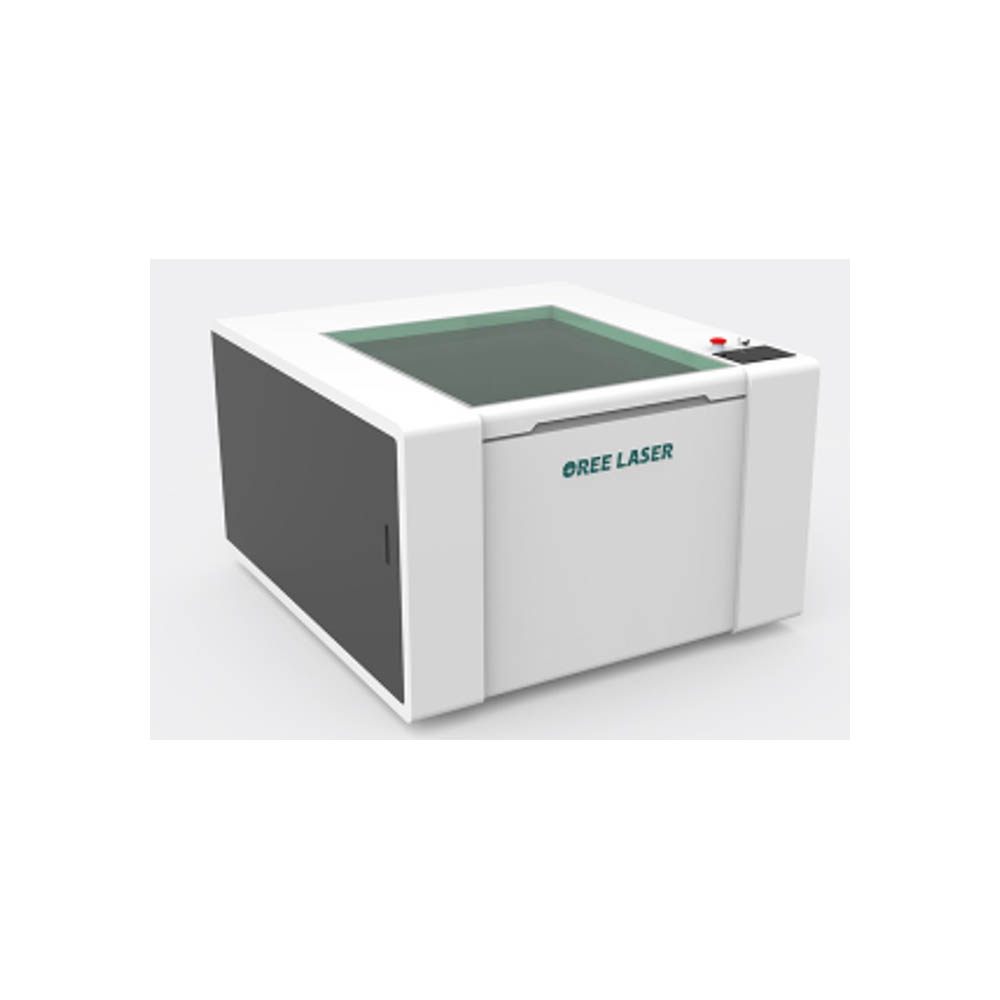

O-M Series
The compact and exquisite body design makes the whole machine more flexible and is very suitable for home use. WiFi Control Makes operation easier. In addition, equipped with imported accessories such as Taiwan Yintai Rail, Japan Omron Electric, Imported Belts, etc., to ensure the precision of cutting and engraving. A variety of power and Work Surfaces are available to meet your requirements.
Description
| Model | O-M 0503 | O-M 0605 | MATERIAL | CUT | ENGRAVE |
| Working Area | 500*300 mm | 600*500 mm | Acrylic, Plexiglass, PMMA, Perspex, Organic Board, Double Color Plate | X | X |
| Laser Power | 40 w | Plastic, PP, PET, PC, PMMA, PS, PES , PA , Plastic Foils & Films , Polycarbonate , Polyester or Polyamide Membrane Keyboards | X | X | |
| Laser Type | CO2 Sealed Laser Tube, 10.6 um | Wood, Bamboo, Veneer , MDF , Blasa Wood , Plywood | X | X | |
| Cooling type | Water Cooling | Leather , Pig Leather , Cow Leather , Sheep Leather | X | X | |
| Engraving Speed | 0-20000 mm/min | Textile, Cotton, Silk , felt , Lace , Synthetic & Technical textiles , Aramid , Polyester , Fleece | X | – | |
| Laser Output Control | 0-100% Set by Software | Foam & Filter , Mats Polyester (PES) , Polyethylene (PE) , Polyurethane (PUR) | – | – | |
| Min. Engraving Size | Chinese: 2.0*2.0 mm; English letter: 1.0 * 1.0 mm | Neoprene | – | – | |
| Highest Scanning Precision | 2500 DPI | Paper , Cardboard , chipboard , Press Board | X | X | |
| Locating Accuracy | Less or equal to 0.01 mm | Stone , Ceramic , Granite , Marble , Natural Stone , Pebble Stone , Slate | – | X | |
| Controlling Software | RDWorks Control System | Rubber Stamps , Synthetic & Silicone Rubber , Natural Rubber , Microporous Foam | X | X | |
| Graphic Format Supported | DXF, AI, PLT, DST, DSB, BMP. JPG, GIF, PNG, MNG, etc. | Silicone Rubber , Synthetic Rubber | X | X | |
| Compatrible Software | TAJIMA, CORELLDRAW, PHOTOSHOP, AUTOCAD, ALL TYPE OF AUTOCAD SOFTWARE IN CLOTH | Glass , Pressed Glass , Float Glass , Crystal Glass , Mirror Glass | – | X | |
| Drive System | High-Precision Stepper Motor | ||||
| Auxiliary Equipment | Exhaust Fan and Air Exhaust Pipe | ||||
| Power Supply | AC 110/220 V +/- 10 % 50/60 Hz | ||||
| Working Environment | Temperature 0 – 45 °C, Humidity: 5-90 % (No condensate water) | ||||
| Option | Up-down platform, Blade Table, Honeycomb Worktable, Rotary device, Red Dot Position system , Auto focus device | ||||
