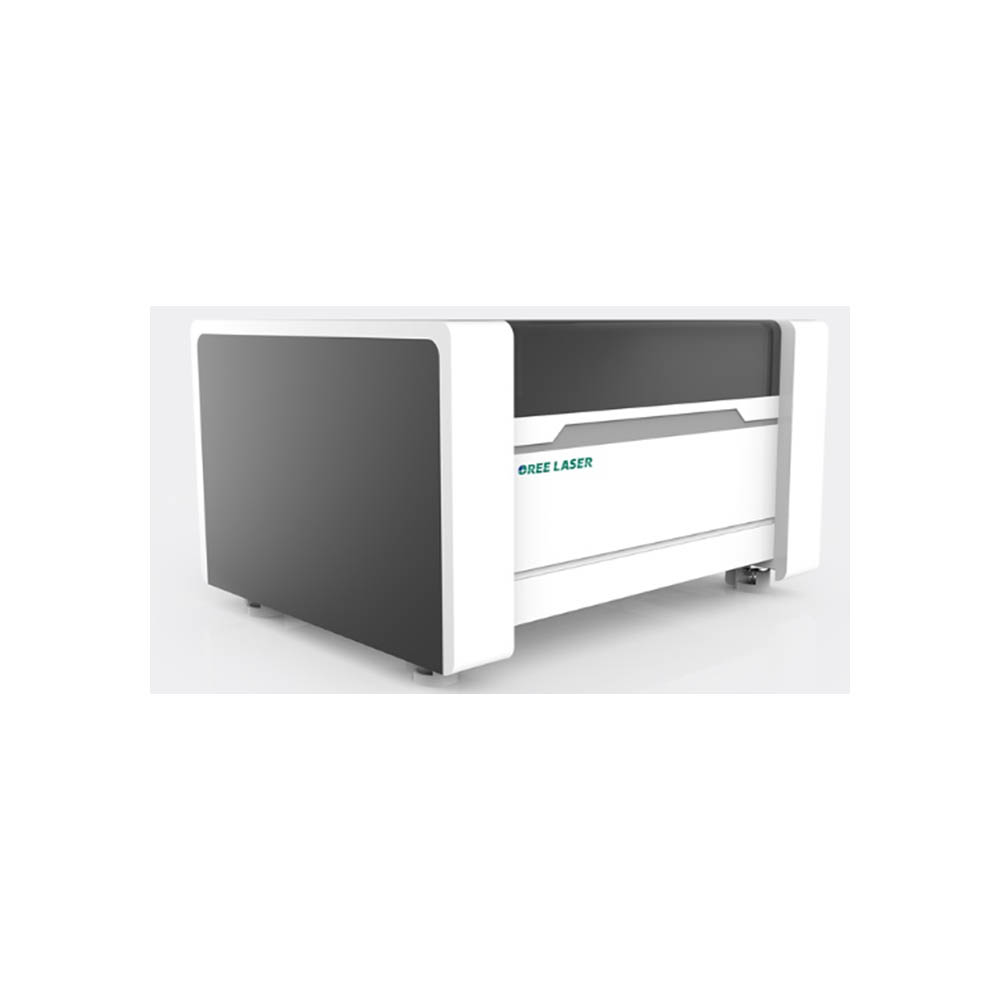

O-C Series
The Aluminium alloy assembly and integrated machine design make the cutting more stable and the procession more environmentally friendly. The whole machine adopts Wifi control, and one computer can control multiple machines at the same time, which is more efficient. Imported accessories like Taiwan Yintai Rail, Japan Omron Electric, imported belts make cutting and carving more stable. Optional Power from 40W to 280 W, professional engraving or cutting non-metallic material such as: acrylic, MDF, plastic, Acrylic, ribber and other Materials. Widely used in advertising, craft processing, decorative furniture and other industries.
Description
| Model | O-C 1006 | O-C 1309 | MATERIAL | CUT | ENGRAVE |
| Working Area | 1000*600 mm | 1300*900 mm | Acrylic, Plexiglass, PMMA, Perspex, Organic Board, Double Color Plate | X | X |
| Laser Power | 80 w / 100 w / 120 w / 150 w | Plastic, PP, PET, PC, PMMA, PS, PES, PA, Plastic Foils & Films, Polycarbonate, Polyester or Polyamide Membrane Keyboards | X | X | |
| Laser Type | CO2 Sealed Laser Tube, 10.6 um | Wood, Bamboo, Veneer, MDF, Blasa Wood, Plywood | X | X | |
| Cooling type | Water Cooling | Leather, Pig Leather, Cow Leather, Sheep Leather | X | X | |
| Engraving Speed | 0-20000 mm/min | Textile, Cotton, Silk, felt, Lace, Synthetic & Technical textiles, Aramid, Polyester, Fleece | X | – | |
| Laser Output Control | 0-100% Set by Software | Foam & Filter, Mats Polyester (PES), Polyethylene (PE), Polyurethane (PUR) | – | – | |
| Min. Engraving Size | Chinese: 2.0*2.0 mm; English letter: 1.0 * 1.0 mm | Neoprene | – | – | |
| Highest Scanning Precision | 2500 DPI | Paper, Cardboard, chipboard, Press Board | X | X | |
| Locating Accuracy | Less or equal to 0.01 mm | Stone, Ceramic, Granite, Marble, Natural Stone, Pebble Stone, Slate | – | X | |
| Controlling Software | TAJIMA, COREDRAW, PHOTOSHOP, AUTOCAD , ALL TYPE OF AUTOCAD SOFTWARE IN CLOTH | Rubber Stamps, Synthetic & Silicone Rubber, Natural Rubber, Microporous Foam | X | X | |
| Drive System | High-Precision Stepper Motor | Silicone Rubber, Synthetic Rubber | X | X | |
| Auxiliary Equipment | Exhaust Fan and Air Exhaust Pipe | Glass, Pressed Glass, Float Glass, Crystal Glass, Mirror Glass | – | X | |
| Power Supply | AC 110/220 V +/- 10 % 50/60 Hz | ||||
| Working Environment | Temperature 0 – 45 °C, Humidity 5-90 % (No condensate water) | ||||
| Option | Up-down platform, Blade Table, Honeycomb Worktable, Rotary device, Red Dot Position system , Auto focus device | ||||
