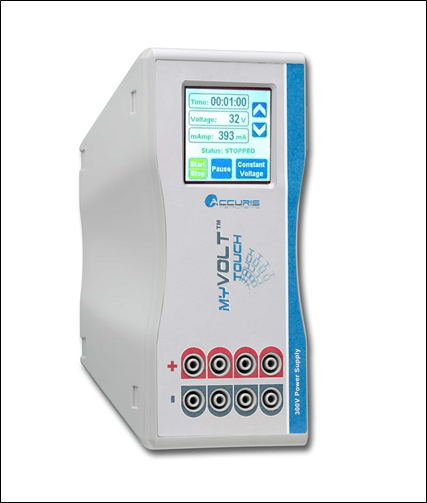

MYVOLT TOUCH POWER SUPPLY
The Accuris myVolt™Touch is a work horse electrophoresis power supply, ideal for efficient separation of nucleic acids and proteins as well as basic western blotting applications. Four pairs of output jacks are wired in parallel for connecting multiple electrophoresis tanks. A color touch screen allows quick setting and monitoring of all run conditions, including run time, voltage, and current. Users can select “Constant Current” or “Constant Voltage” during an electrophoresis run, keeping the chosen parameter fixed as resistance changes. The dual orientation design with rotating display allows the myVolt Touch to be installed in the most convenient location, on a shelf or bench, saving valuable space.
Description
| Specifications | |
| Output Setting: | Constant Voltage or Constant Current |
| Voltage Output: | 10-300V (1V increments) |
| Current Output: | 4 – 400mA (1 mA increments) |
| Max Wattage: | 100W |
| Output Terminals: | 4 pairs |
| Timer: | 1 min. – 20hrs |
| Safety: | No load, load change, overload detection |
| Display: | 2 x 2 in. color touchscreen |
| Weight: | 2.0 lbs / 0.9 kg |
| Dimensions: | 8.5 x 6.3 x 4.0 in 21.5x 15.5 x 9.75 cm |
| Electrical: | 100V to 230V, 50/60Hz |
