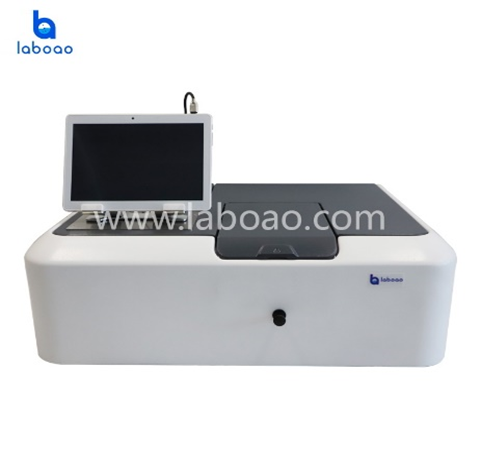

Movable LCD screen double beam spectrophotometer
A spectrophotometer is commonly used for the measurement of transmittance or reflectance of solutions, transparent or opaque solids, such as polished glass, or gases. In chemistry, spectrophotometry is the quantitative measurement of the reflection or transmission properties of a material as a function of wavelength.
Description
| Model | LU-T9 | LU-T9S |
| Optical system | Czerny-Turner double beam;1200pieces/mm Imported holographic grating | |
| Wavelength range | 190～1100nm | |
| Spectral bandwidth | 1nm | 0.5/1/2/4/5nm（five-speed adjustment） |
| Wavelength accuracy | ±0.3nm | |
| Wavelength repeatability | ±0.1nm | |
| Transmittance accuracy | ±0.3%T; ±0.002Abs（0~0.5Abs）; ±0.004（0.5-1.0Abs） | |
| Transmittance repeatability | ±0.1%T; ±0.001Abs（0~0.5Abs）; ±0.002（0.5-1.0Abs） | |
| Stray light | ≤0.03%T, @220nm/360nm | |
| Noise | 0% Line noise:0.05%；100 Line noise: 0.1% | |
| Drift | ±0.0008Abs（at 250nm and 500nm,preheating for more than 1 hour ） | |
| Baseline flatness | ±0.0008Abs（preheating for more than 1 hour） | |
| Baseline dark noise | 0.05%T | |
| Luminosity range | 0～200℅T, -4～4A,0～9999C(0-9999F) | |
| Test mode | absorbance, transmittance, reflectivity, energy | |
| Light source | imported tungsten lamp and xenon lamp | |
| Display | Mobile operation 10.1 inch capacitive touch screen | |
| Data output | USB1.1 ,Email,U disk | |
| Data output format | CSV, PDF | |
| RAM | 32GB（up to 128GB） | |
| Power supply | AC90～250V/ 50～60Hz | |
| Dimension (L×W×H)mm | 650×510×210 | |
| Weight | 29kg | 30kg |
