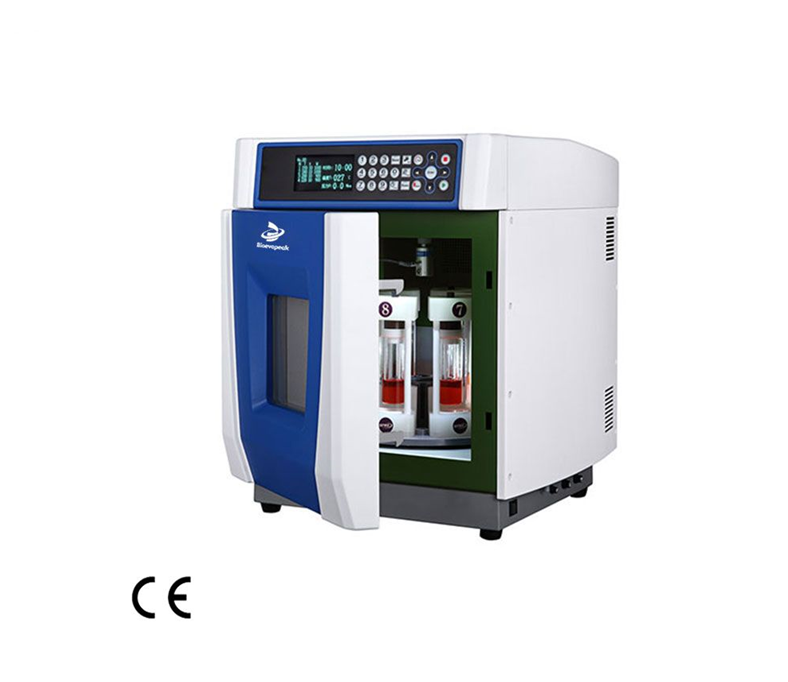

Microwave Sample Preparation System, MDES-15

Description

· Model	MDES-15
Power	220-240 VAC 50/60Hz 16A
Microwave source	2450MHz, dual magnetron design
Installed power	3600W
Maximum output power	2200W, non-pulse continuous automatic variable frequency control
Cavity	65L stainless steal industrial grade professional chamber, multi-layer chemical resistant PFA coating
Door design	6 layer steel structure and pop up cushioning explosion-proof sliding chamber door (Auto-Pop) design, electronic and mechanical dual-control door lock
Video monitoring system (Optional)	Wireless video monitoring system, mobile phones and tablets can realize the observation and monitoring of the reaction
Turntable design	Load 16 GP-100 closed digestion vessels at same time
Pressure measurement and control system	Piezoelectric crystal pressure sensor, pressure control range :0-10MPa (1500 psi), accuracy ± 0.01MPa
Temperature measurement and control system	High-precision platinum resistor temperature sensor, temperature range :0-300°C, accuracy ±1℃; IR temperature sensor as optional, temperature range :0-300°C, accuracy ±1℃.
Outer vessel material	Explosion-proof outer vessel made of aerospace composite fiber. high temperature and pressure resistance reach 600℃and 66 Mpa(10000psi).
Inner vessel material	Modified TFM material
Chamber exhaust system	High-power anti corrosion axial fan, 20 minutes cooling time (from 200°C to 60°C)
Working environment	0-40 °C, 15-80%RH
Whole physical size/weight	550670700 mm, 70 KG

Name of reaction vessel	16 GP-100 ultrahigh strength frame closed vessel	8 QZ-100 high temperature/pressure visual closed quartz vessel	8 LV-500 ultra large capacity digestion vessel carousel
Model of reaction vessel	GP-100	QZ-100	LV-500
Processing capacity in one batch	16	8	8
Inner vessel material	TFM	Pure Quartz	TFM
Explosion-proof outer vessel material	Aerospace composite fiber Xtra Fiber	N/A	Aerospace composite fiber Xtra Fiber
Frame structure of digestion rotor	Independent frame structure of each digestion vessel	Independent frame structure of each digestion vessel	Integrated high strength alloy rotary carousel
Reaction vessel volume	100ml	100ml	500ml
Maximum design pressure	10MPa(1500psi)	10MPa(1500psi)	4MPa (600psi)
Maximum temperature	300℃	310℃	230℃
Maximum sample amount	0.5-1.0g	0.5-1.0g	5-10g
Resistance to HF	Yes	No	Yes
Magnetic stirring function	No	No	Yes
Typical application	Food, soil, metal, alloy, cosmetic, plant, etc.	Fat, oil, plastic, coal, etc.	Biological samples, environmental samples, etc.
