Microwave Digestion/Extraction

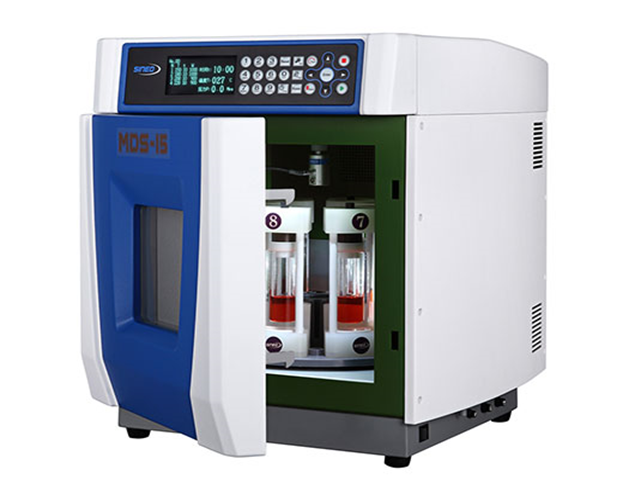

Our Latest microwave system (The MDS-15)is the culmination of over 20 years of refinement. The MDS-15 is a high-throughput, multi-functional closed microwave sample preparation workstation with the latest technology and a lifetime warranty on the core component. Versatility: The MDS-15 is a versatile microwave which can handle the routine work, and more complicated and demanding samples in your prep rack with a wide variety of vessels to choose from.
Description
| Name of reaction vessel | 16 GP-100 ultrahigh strength frame closed vessel | 8 QZ-100 high temperature/pressure visual closed quartz vessel | 8 LV-500 ultra large capacity digestion vessel carousel |
| Model of reaction vessel | GP-100 | QZ-100 | LV-500 |
| Processing capacity in one batch | 16 | 8 | 8 |
| Inner vessel material | TFM | Pure Quartz | TFM |
| Explosion-proof outer vessel material | Aerospace composite fiber Xtra Fiber | N/A | Aerospace composite fiber Xtra Fiber |
| Frame structure of digestion rotor | Independent frame structure of each digestion vessel | Independent frame structure of each digestion vessel | Integrated high strength alloy rotary carousel |
| Reaction vessel volume | 100ml | 100ml | 500ml |
| Maximum design pressure | 10MPa(1500psi) | 10MPa(1500psi) | 4MPa (600psi) |
| Maximum temperature | 300℃ | 310℃ | 230℃ |
| Maximum sample amount | 0.5-1.0g | 0.5-1.0g | 5-10g |
| Resistance to HF | Yes | No | Yes |
| Magnetic stirring function | No | No | Yes |
| Typical application | Food, soil, metal, alloy, cosmetic, plant, etc. | Fat, oil, plastic, coal, etc. | Biological samples, environmental samples, etc. |
| Power | 220-240 VAC 50/60Hz 16A |
| Microwave source | 2450MHz, dual magnetron design |
| Installed power | 3600W |
| Maximum output power | 2200W, non-pulse continuous automatic variable frequency control |
| Cavity | 65L stainless steal industrial grade professional chamber, multi-layer chemical resistant PFA coating |
| Door design | 6 layer steel structure and popup cushioning explosion-proof sliding chamber door (Auto-Pop) design, electronic and mechanical dual-control door lock |
| Video monitoring system (Optional) | Wireless video monitoring system, mobile phones and tablets can realize the observation and monitoring of the reaction |
| Turntable design | Load 16 GP-100 closed digestion vessels at same time |
| Pressure measurement and control system | Piezoelectric crystal pressure sensor, pressure control range :0-10MPa (1500 psi), accuracy ± 0.01MPa |
| Temperature measurement and control system | High-precision platinum resistor temperature sensor, temperature range :0-300°C, accuracy ±1℃; IR temperature sensor as optional, temperature range :0-300°C, accuracy ±1℃. |
| Outer vessel material | Explosion-proof outer vessel made of aerospace composite fiber. high temperature and pressure resistance reach 600℃and 66 Mpa(10000psi). |
| Inner vessel material | Modified TFM material |
| Chamber exhaust system | High-power anticorrosion axial fan, 20 minutes cooling time (from 200°C to 60°C) |
| Working environment | 0-40 °C, 15-80%RH |
| Whole physical size/weight | 550*670*700 mm, 70 KG |
