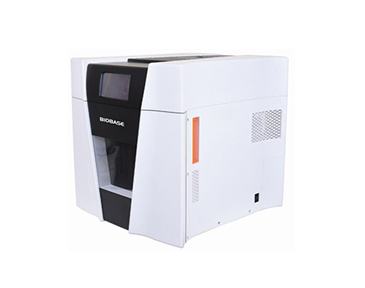

Microwave Digester
BIOBASE Microwave Digestion System adopts the international advanced double magnetron frequency microwave heating system and realizes the high-power microwave balanced magnetic field safety heating.
It is widely used in food, textile, plastic, geological, metallurgical, coal, biological medicine, petroleum chemical industry, environmental monitoring, sewage treatment, battery manufacturing, cosmetics, etc.
Description
| Model | BMD-1 | BMD-2 |
| Cavity | 48L Resonant Cavity | |
| Digestion Method | 50 preinstalled methods, | 20 preinstalled methods, |
| programmable 100 methods | programmable 50 methods | |
| Max. Temp. | 305℃ | |
| Temp. Accuracy | ±1℃ | |
| Pressure Accuracy | ±0.01Mpa | |
| Temperature Sensor | Optical Fiber Sensor | |
| Vessel Pressure Capacity | 80 Mpa | 75 Mpa |
| Vessel Quantity | 12 Vessels | 10 Vessels |
| Vessel Volume | 100ml | |
| Microwave Cavity Material | SS316 with 10 layers Telflon | SS316 with 8 layers Telflon |
| Cooling Method | Forced air cooling | |
| Interface | USB, RS232 | / |
| Power Consumption | 1600W | |
| Power Supply | AC220±10%, 50Hz | |
| External Size(W*D*H) | 520*593*660mm | |
| Package Size(W*D*H) | 830*900*970mm | |
| Gross Weight | 107kg | |
| Other related model • BMD-E1 |
||
