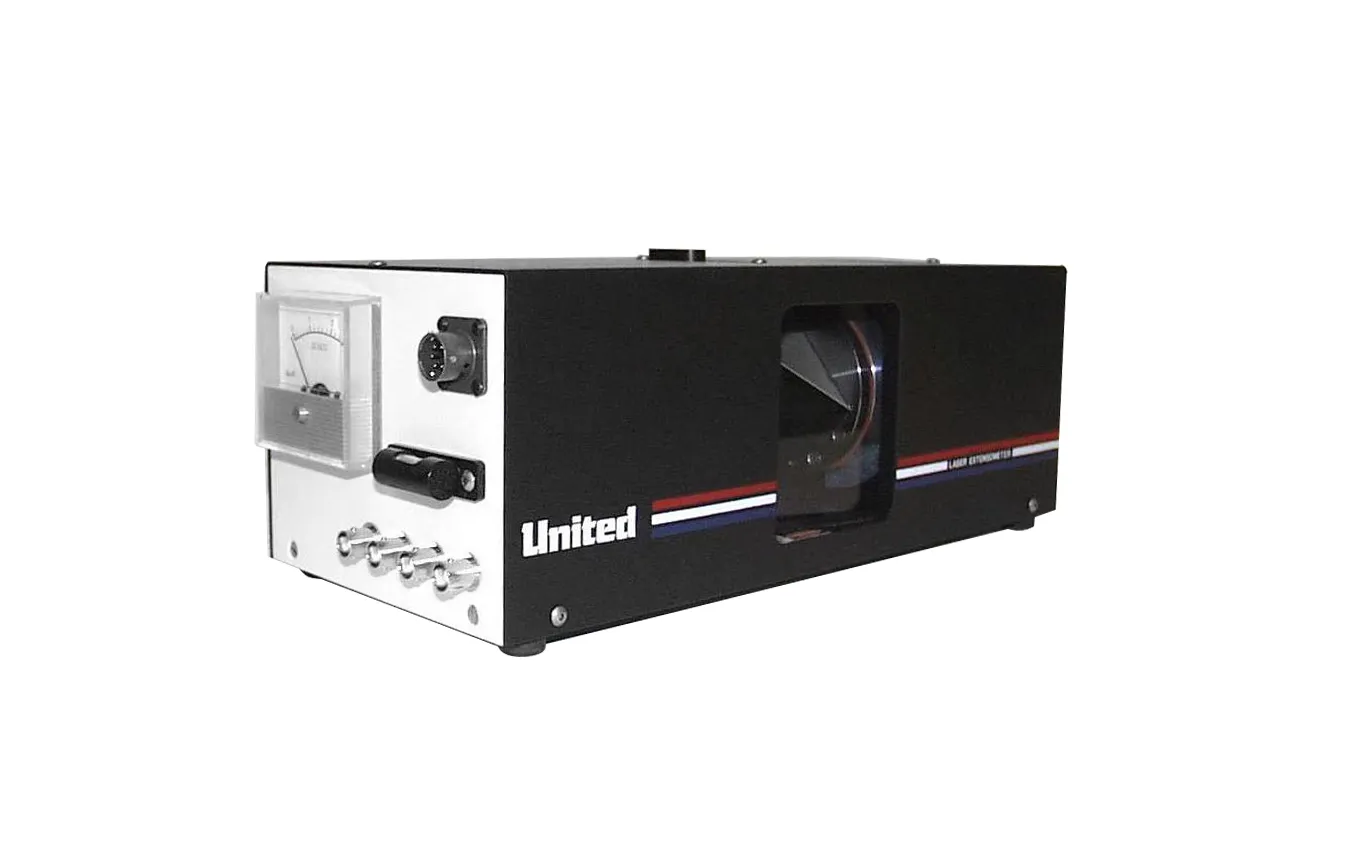

Laser Extensometer
Using a unique laser scanning approach developed by United Testing Systems, the Laser Extensometer permits accurate non-contact extension measurement.
SKU: Laser Extensometer
Brand: United Testing
Applications: Compression Testing, Creep to Fail Testing, Flexibility Testing, Materials Testing, Strength Testing
Industries: Aerospace, Automotive, Beverage, Construction & Civil Engineering, Defense, Education, Electronics, Flexible Packaging, Industrial, Pharmaceutical, Plastics and polymers
Materials: Adhesive, Composites, Elastomers, Film, Foam, Metals, Plastics and Polymers, Rubber, Steel, Textile
Designed to provide accurate extension measurements from less than 1% to greater than 1000% strain, this versatile optical scanning device performs well for sample testing with an environmental chamber at elevated or even very low test temperatures, as well as at normal temperatures and environments.
The United Laser Extensometer is unique in its ability to measure a broad range of materials including ultra-high modulus carbon composites, ceramics, steel and non-ferrous metals, paper and wood products as well as most varieties of elastomers.
Description
Spec: Solid state 635 nm laser diode transmitter
Spec: -80 degree scanning (+/- 40 degrees from horizon)
Spec: Receiver (Co-Axial with the transmitter) features independent focusing and automatic gain control
Spec: Retro-reflective gage marks (EXT-250-LT) must be applied to each test specimen, temperature not to exceed 250 Deg C (480 Deg F)
Performance: Meets or exceeds ASTM E83 Class B2 with gage length 2″ (50 mm) or greater
Analog Output: 10 mV full scale (rescaleable)
Select from Multiple Full Scale Ranges: 0 – 5% up to 0 – 2000%. 0 – 2%
Measures: strain for samples in tension or compression
Minimum recommended gage length: 10mm
Resolution: 0.0002″ (0.005mm) at 19″ (485mm)test distance
