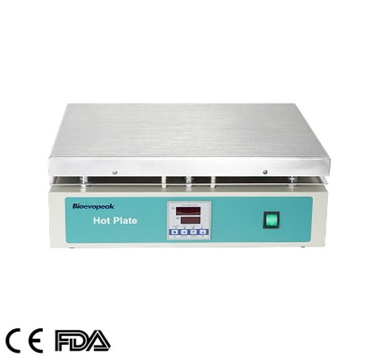

Hotplate, 350 degree, HPT-350 Series
• Aluminun hot plate,uniform surface temperature
• Heating up fast and uniform,heating power is stepless adjustable
• Digital hot plate has the more functions as follows:
• Digital display can read the temperature more clearly.
Description
| Model | HPT-350-5A/5C | HPT-350-6A/6C | HPT-350-7A/7C | HPT-350-8A/8C | HPT-350-9A/9C | |
| Working time | Continuous | |||||
| Max Temp. | 350℃ | |||||
| （℃） | ||||||
| Structure | Outer Shell | Iron plate welding, | ||||
| surface spraying | ||||||
| Hot plate | Aluminum tensile | |||||
| Driving mode | No | |||||
| Heating power | 1200 | 1800 | 2000 | 2600 | 3000 | |
| (W) | ||||||
| Controller | Continuous | Yes | ||||
| operation | ||||||
| Setting method | Scale/Digital | |||||
| Timer | No/Digital | |||||
| Operation function | No | |||||
| Temperature | K model | |||||
| sensor | ||||||
| Exterior size | 34*37*22 | 42*50*22 | 45*47*22 | 42*65*22 | 47*65*22 | |
| (W*L*H) | ||||||
| (cm) | ||||||
| Please size（mm） | 300*300 | 350*450 | 400*400 | 350*600 | 400*600 | |
| Plate load | 20KG | 30KG | 30KG | 38KG | 40KG | |
| Power supply | 220V | |||||
| （50/60Hz） | ||||||
| NW/GW (kg) | 6.2/7 | 8.4/9.6 | 8.5/9.8 | nov-13 | 12/14.2 | |
