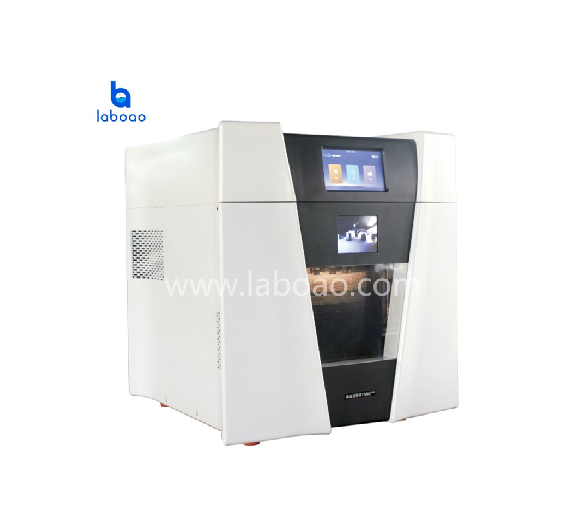

High Pressure And High Throughput Microwave Digestion Instrument
Description
| Model | TANK PLUS |
| Power | 220~240VAC 50/60Hz 20A |
| Microwave source | 2450MHz, dual magnetron design, high energy microwave emission |
| Installation power | 3800W |
| Maximum output power | 2000W |
| Microwave cavity | 66L large volume 316L stainless steel cavity, inner and outer multi-layer corrosion-resistant Teflon spray |
| Batch numbers | 12 Vessels |
| Explosion-proof safety door design | Safety door designed based on 3-D directional explosion-proof mechanism, anti-microwave leakage integrated with anti-flow groove structure design |
| Pressure monitoring system | High-precision novel semiconductor pressure sensor with pressure control range: 0~10MPa (1450psi), control accuracy ±0.01MPa |
| Temperature monitoring system | Non-metallic multi-core optical fiber + full tank IR dual temperature measurement, temperature control range: -40~305 °C, temperature control accuracy: ±0.1 °C |
| Passive protection system | COT real-time temperature and pressure anomaly monitoring system can automatically alarm and cut off microwaves to protect users’ safety when temperature and pressure anomalies occur in any one of the reaction vessels. |
| Software | Android system; video SOP; built-in method library; cloud service, data storage and sharing; Wi-Fi remote connection, etc. |
| Communication ports | With USB port and network cable port |
| Video Monitoring | With an internal camera for real-time monitoring of the operation of the digestion vessel in the chamber |
| Furnace exhaust system | Cool to room temperature for less than 15 minutes |
| Microwave extraction module | Normal pressure extraction experiment |
| Working environment | 0~40℃ / 15~80%RH |
| Overall physical size / net weight | 600*685*660 (W*D*H)/62kg |
.
| Other related models | |
| • Enclosed high-throughput microwave digestion extraction workstation • High-throughput microwave sample preparation workstation • Closed microwave digestion extraction system • Ultra high performance closed microwave digestion extraction system • Laboratory microwave digestion extraction system with touch screen |
