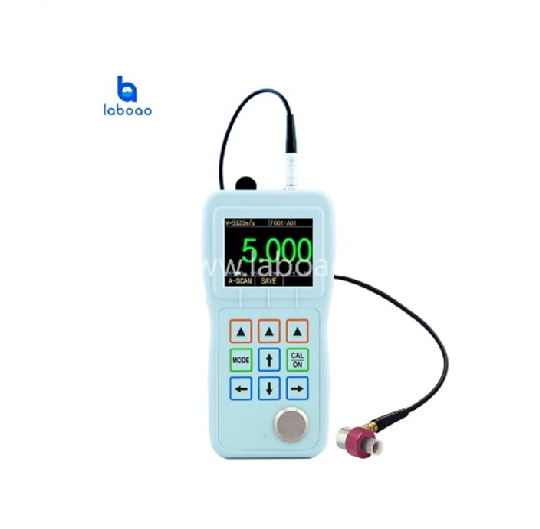

High Precision Thickness Testing Gauge
This instrument can be widely used to measure the thickness of metal materials. For thin parts measurement and high precision measurement, it is even better. In addition, the instrument can penetrate thinner coatings, paint layers, and can be used for the measurement of ultra-thin walls with paint layers such as fire extinguishers.
Description
| Model | LP-5 | LP-5DL |
| Measuring range | 0.2-27 mm | |
| Penetration coating function | YES | |
| Display | 2.4QVGA (320×240) color OLED screen with contrast ratio of 10000:1 | |
| Working principle | Ultrasonic Measurement Principle Using Single Crystal Delay Probe | |
| Measurement mode and measurement range (material is steel)： | ||
| I-E | Pulse-echo method, measuring range 1.5mm-27mm | |
| E-E | Echo-echo method, measuring range 0.2 mm-13.5 mm. | |
| ME-E | Multiple wave calibration method, measuring range 0.2mm-9mm. | |
| AUTO | Automatic mode measurement range 0.25mm-27mm | |
| Display mode | ||
| A-SCAN | Display complete RF echo or rectified half-wave waveform | |
| B-SCAN | Time-based B-Scan, Show workpiece cross section | |
| Storage | NO | store 400 files, 100,000 thickness values and 1000 A and B scanning waveforms. |
| Large thickness reading | General display view of thickness values | |
| Difference/Reduction Rate | Displays the difference between the actual thickness and the preset thickness and the thinning percentage | |
| Measurement resolution | 0.001 or 0.01 or 0.1mm (0.0001 or 0.001 or 0.01 in) | |
| Unit | Millimeters or inches | |
| Gain | Real-time adjustable | |
| The measurement update rate | 4HZ, 8HZ and 16HZ per second are optional. | |
| The sound speed range of the material | 500-9999m/s，0.0179-0.3937in/us | |
| Alarm function | When the measured value is greater than the preset upper limit or lower limit, dynamically changing the thickness reading color alarm | |
| Language | Chinese, English, Japanese, German and French are available | |
| Power supply | two AA batteries | |
| Operating time | Two AA batteries for more than 35 hours | |
| Automatically shut down | Optional 5, 10, 20 minutes after no operation automatically shut down, or only manually shut down | |
| working temperature | -10℃ ~+50℃, with special requirements up to -20℃ | |
| Size | 153*76*37mm | |
| Weight | 280g (including battery) | |
| Standard configuration | Thickness gauge host, standard probe, instrument box, two alkaline batteries, coupling agent, operation manual, certificate of approval, packing list, 1 data communication line and 1 software CD | |
| Optional accessories | Rubber jacket; Step test block for calibration; Coupling agent | |
.
