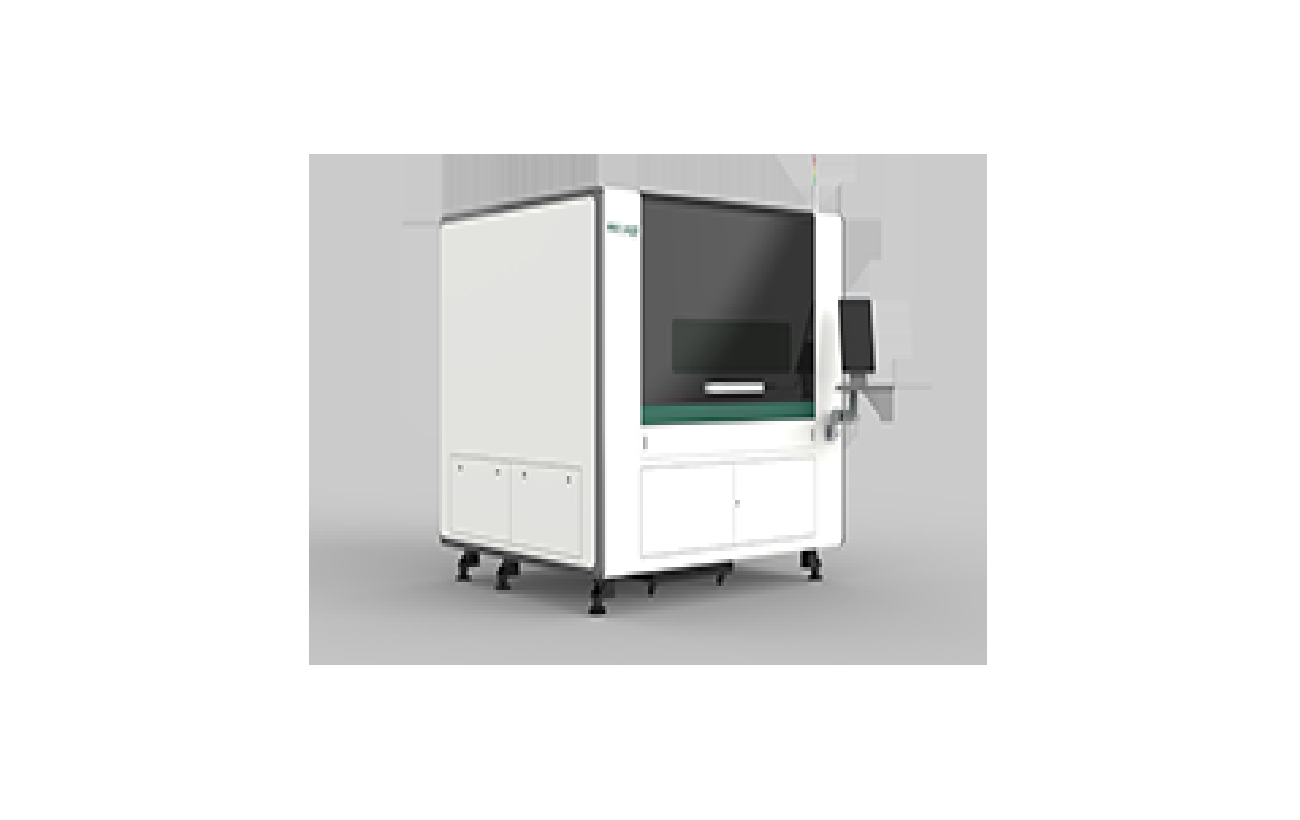

High precision fiber laser cutting machine OR-S
High rigidity overweight welded bed
Using 8mm high-strength steel pipe laser blanking, plug-in bed structure, adopting three welding processes such as straight-through welding, the weld is not easy to tear, make the bed maintains good mechanical properties, good tensile performance, toughness, and hardness of the product.
Auto Focus Laser Head
Suitable for a variety of focal lengths, the focus position can be adjusted according to different thicknesses. Flexible and fast, no collision, automatic edge finding, reducing sheet waste.
Fully enclosed protection, OD4+ laser protection level
Fully enclosed design and laser protective glass reach OD4+ laser protection level, and the powerful dust removal system will not pollute the environment.
Y-axis dual drive dual screw configuration
Using Y-axis dual-drive dual-screw configuration, 4 guide rails run more stable, The X axis is equipped with 2 guide rails, which can run faster and cut more accurately, ensuring that there is no wavy line in straight cutting.
Intelligent Control System
CypCut plane cutting software is a set of software specially developed for the deep customization of the laser cutting industry, easy to use, rich in functions, suitable for various processing occasions.
Horizontal sliding console
It is convenient for the operator to carry out subsequent operations such as loading and unloading, slag cleaning, etc., which is convenient and worry-free.
