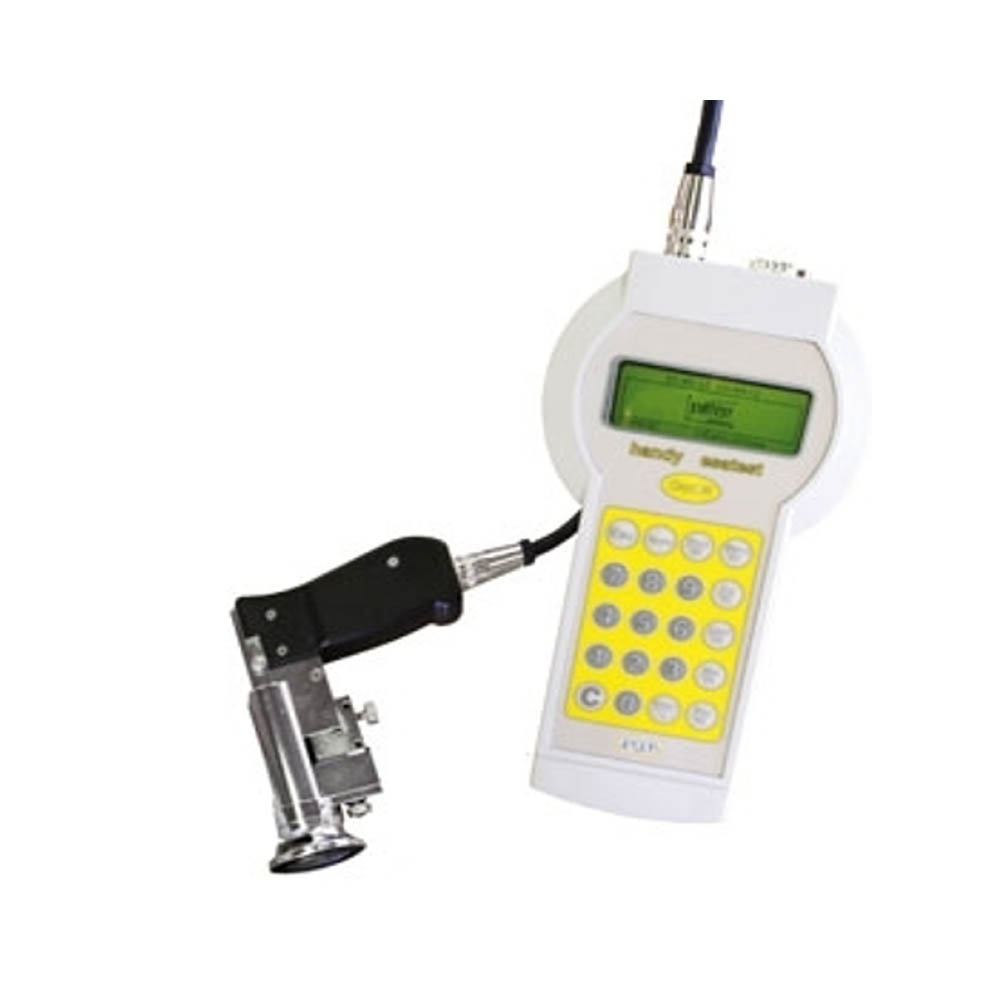

Handy Esatest X
The Portable hardness tester Handy Esatest (DIN 50158) has been designed to solve some still unsolved problems in hardness testing. The innovative ESATEST® principle patented by Ernst en, works based on the hardness determination through electrical resistance and allows to test in difficult and inaccessible points, unobtainable with other hardness testers. With a simple indentation it is possible to get all values corresponding to the different forces up to the maximum force applied thus allowing getting an indicative evaluation of the heat treatment characteristics. The measurement is not influenced by deflection or bending of the specimen. Handy Esatest X permits hardness testing of all types of metal without changing the penetrator.
Description
| Working principle | ESATEST |
| PAT Ernst en | |
| testing through electrical resistance | |
| Loads | Continuous progressive load application with acquisition of load values and electrical resistance in realtime from 1kgf to 10kgf (9.81N to 98.1N). |
| Standard scales | HV, HRC, HRB, HRA, Brinell HB30 |
| ZNmm², HRF | |
| Languages | English, German, Italian, French, Spanish. Other languages on request |
| Dimensions | case 44cm x 40cm x 16cm |
| Notes | Unique in his kind, permits to measure, until now unaccessible points, with maximal reliability and precision. |
