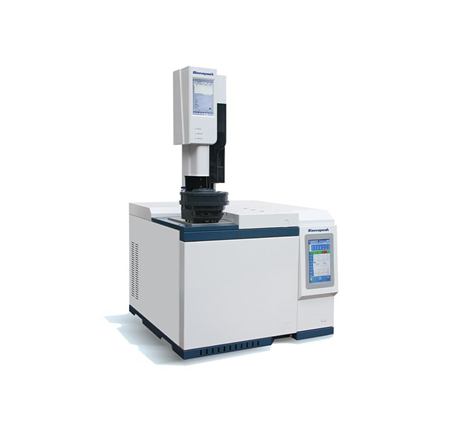

Gas Chromatograph, GC-901
1) Detector: FID, TCD, ECD, FPD, NPD
2) Temp control area: 8-way
3) 16 Steps of procedure temp rising
4) Temp control range: RT -450°C
5) Speed ratio of range rising: 0.1-80℃/min
Description
| Detector | Sensitivity / Detection Limit | Drift (30min) | Linearity |
| Hydrogen flame FID | DFID≤3×10-12g/s (Nhexadecane/Isooctane) | ≤0.2mv | ＞107 |
| Thermal conductivity cell TCD | S≥10000mv.ml/mg(Benzene/Toluene) | ≤20uv | ＞105 |
| Electron capture ECD | DECD≤1×10-14g/ml(γ-666) | ＜15uv | ＞106 |
| Flame luminosity FPD | DFPD(S)≤2×10-11g/s (S in methyl parathion) | ≤ 3% of full scale | ＞103 |
| DFPD(P)≤1×10-12g/s (P in methyl parathion) | ＞104 | ||
| Nitrogen and phosphorus NPD | DNPD(N)≤1×10-12g/s (Azobenzene) | ≤ 3% of full scale | ＞102 |
| DNPD(P)≤1×10-12g/s(Malathion) | ＞103 |
