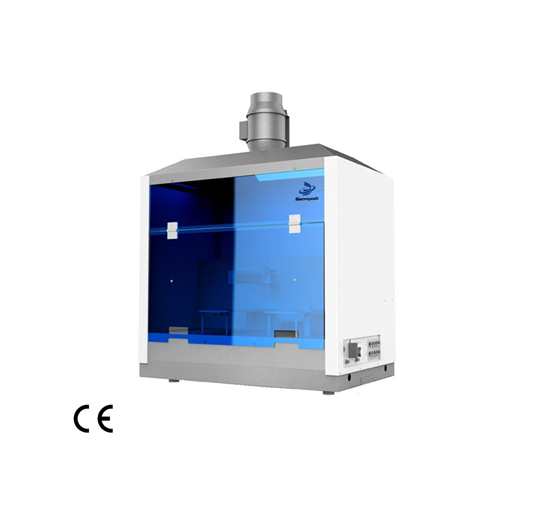

Fully Automatic Graphite Digestion Platform, GRD-60A/B
• Temperature Control Range: RT+5℃-300℃
• Temperature Control Accuracy: 士 1℃
• Temperature Control Zone: unit 2 zones
• Sample Handling Quantity: 60 holes
Description
Model name |
GRD-60A |
GRD-60B |
Temperature control range /temperature control accuracy |
RT+5℃-300℃ / 士 1℃ |
|
Temperature control zone/digestion unit |
2 zones / 2 units |
|
Sample handling quantity/heating material |
60 holes / graphite |
|
temperature control system |
PID intelligent control, 60 sections of program heating and single point heating mode. |
|
Constant volume mode/ |
Ultrasonic wave sensor |
|
Constant volume range/constant volume accuracy |
1-50ml / ≤ 1%/5-50ml hour/ per time |
|
Reagent adding accuracy |
≤0.5% |
|
Mixing mode/amplitude |
Rotation/vibration amplitude 20mm |
|
Mixing time |
About 0-99min |
|
Reagent channel |
8 channels |
|
Anti-corrosion and anti-condensation design |
Positive pressure ventilation, with anti – corrosion,anti – condensation water system, and independent power supply |
Not applicable |
Internal and external environment temperature determination system |
Equipped |
Not applicable |
Working voltage |
AC220V/50Hz ±10% |
|
Heating power |
4KW |
|
Fume hoods |
Equipped |
Not applicable |
Net size (L*W*H) |
650*1020*1400mm |
650*1020*750mm |
