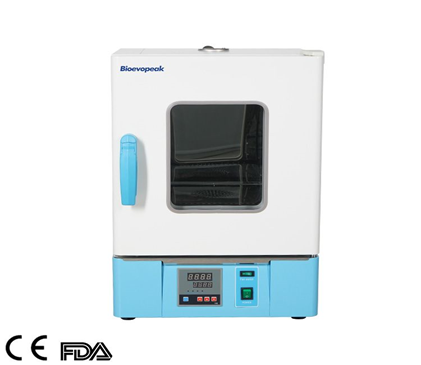

Forced Air Drying Oven, DOF-30E/ 45E/ 65E/ 125E
DOF series blast drying oven has the characteristics of the new model, advanced technology, accurate temperature control, stable performance, easy maintenance, convenient operation, and so on. It is suitable for drying, baking, wax melting, and heat treatment in laboratories of industrial and mining enterprises, scientific research institutes, medical and health institutions, etc.
Description
| Model | DOF-30E | DOF-45E | DOF-65E | DOF-125E |
| Voltage（V） | 220V/50HZ | |||
| Temperature control range（℃） | RT+10-300℃ | |||
| Temperature fluctuation（℃） | ±1.0℃ | |||
| Temperature resolution （℃） | 0.1℃ | |||
| Ambient temperature （℃） | +5-40℃ | |||
| Heating power (kw) | 0.8 | 1.2 | 1.6 | 2.3 |
| Internal dimensions W × D × H (mm) | 310×310×310 | 350×350×350 | 400×360×450 | 500×450×550 |
| External Dimensions W × D × H (mm) | 460×510×695 | 500×550×735 | 550×550×840 | 636×680×915 |
| Packaging dimensions W×D×H(mm) | 550×570×765 | 620×585×800 | 640×640×905 | 730×720×1000 |
| Load per rack | 15/kg (2 for standard configuration) | |||
| Net weight / gross weight | 39/51 | 42/56 | 47/61 | 56/71 |
| Timing range | 1-9999min | |||
