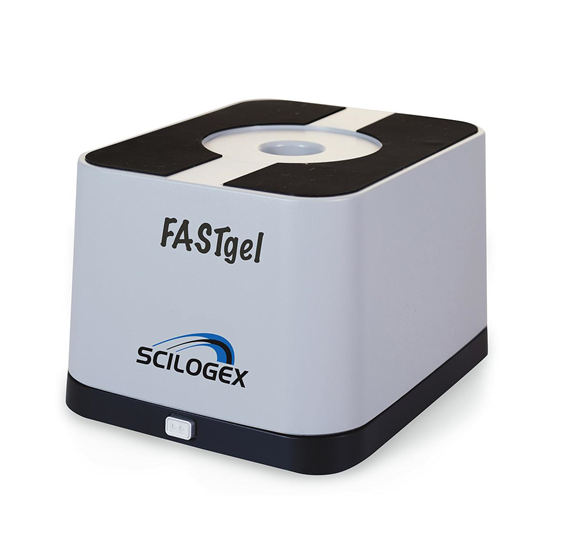

FASTgel Gel Portable Imaging System
FASTgel facilitates fast access to acquire high-quality images of electrophoresis gel or transfer membrane for analysis using a smartphone or tablet. With epi-blue instead of ultraviolet light source, FASTgel is able to safely and efficiently visualize stained DNA signals after gel electrophoresis. In addition, Coomassie blue-stained SDS-PAGE and colony dishes can be observed with the light plate mounted on the FASTgel. Optionally you can control the complete imaging system via an app on your smartphone or tablet.
Description
| Model | FASTgel |
| Light Source | 470nm epi blue light |
| White Light Plate | Yes |
| Filter Protective Shield | Amber, using when observing or cutting gels |
| Viewing Area | 10 x 10cm |
| Compatible Dye | DNA: ECO Safe, SYBR Safe, GelGreen |
| Protein: Lightning Red, Silver/ Coomassie blue, SYPRO Ruby | |
| Light Source (L x W x H) | 216 x 168 x 54 mm |
| Light Source Cover (L x W x H) | 211 x 161 x 108 mm |
| Total Size (L x W x H) | 216 x 168 x 128 mm |
| Weight | 1.2 Kg |
| Power Supply | 12V / 1.5A AC power adapter, US Plug |
| Tare Range | Full capacity by subtraction |
| Optional app | for Android 4.4 and above or iOS9.0 and above |
