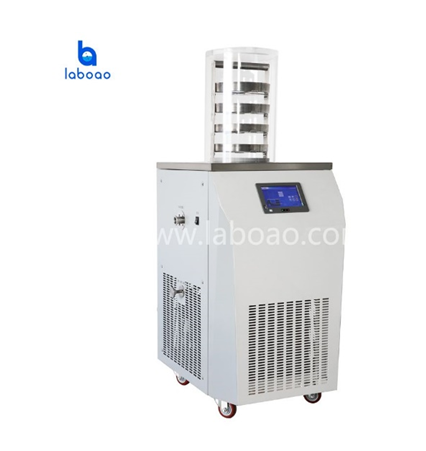

Electric Heating Normal Lab Freeze Dryer
Is suitable for freeze-drying of bulk (liquid, pasty, solid) conventional materials.
Description
| Model | LFD-18SA |
| Freeze-drying area | 0.18m2/0.27m2 |
| Material plate size | Ф240mm |
| Number of material trays | 4-jun |
| Material plate spacing | 70mm/50mm |
| Cold trap temperature | ≤ -60 ° C (no load), optional ≤ -80 ° C (no load) |
| Cold trap depth | 400mm |
| Cold trap diameter | Ф270mm |
| Water catching capacity | 6kg/24h |
| Pumping rate | 4L/S |
| Ultimate vacuum | ≤5pa (no load) |
| Installed power | 1800w |
| Host weight | 105kg |
| Mainframe dimensions | 630 × 580 × 970mm |
| -80 °C mainframe dimensions | 810 × 580 × 950mm |
| Drying chamber size | Ф300×485mm |
| Cooling method | air cooling |
| Defrost mode | naturalized cream |
| Plate loading material | 1.8L/2.7L (material thickness 10mm) |
.
| Other related models | |
| • Electric Heating Top Press Lab Freeze Dryer • LFD-18SB |
