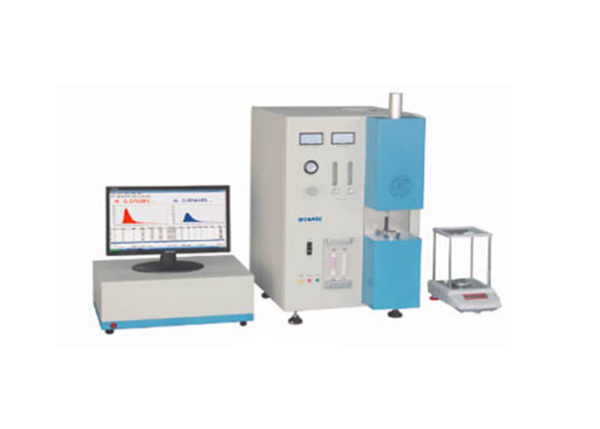

Carbon & Sulfur Analyzer
High-frequency Infrared Carbon & Sulfur Analyzer can determine the percentage of carbon and sulfur in steel, iron, alloy, nonferrous metal, cement, mineral, glass and other material
Description
| Working Principle | High-frequency inductive combustion and infrared absorption system | |
| Sample Weight (Solid steel) | Standard 0.5g | |
| Accuracy | C/S: 0.1ppm | |
| Analysis Time | 20~100s adjustable (normally: 35s) | |
| Working Cycle | 24 hours | |
| The difference betweenBK-CSA5 and BK-CSA6: | ||
| Model | BK-CSA5 | BK-CSA6 |
| Appearance | Desktop detector, with desktop high-frequency furnace, save space | Separate work station, with vertical high-frequency furnace |
| Analysis Range | C: 0.0005%~6.0000% | C: 0.0001%~10.0000% |
| (can be extended to 99.999%) | (can be extended to 99.999%) | |
| S: 0.0005%~0.35000% | S: 0.0001%~2.0000% | |
| (can be extended to 99.999%) | (can be extended to 99.999%) | |
| Analysis Pool | 2 pools | 2 pools (optional 4 pools) |
| Consumption | 2.2KW | 2.5KW |
| Power Supply | AC220V±10%, 50/60Hz | |
| Package Size (W*D*H) | 1380*760*980mm | 1550*750*910mm, 740*580*1410mm |
| Gross Weight | 200kg | 330kg |
| Standard Accessories | Main unit, high frequency automatic inductive combustion furnace, electric balance, computer, printer | |
| 1000 times effective analysis of spare parts | ||
