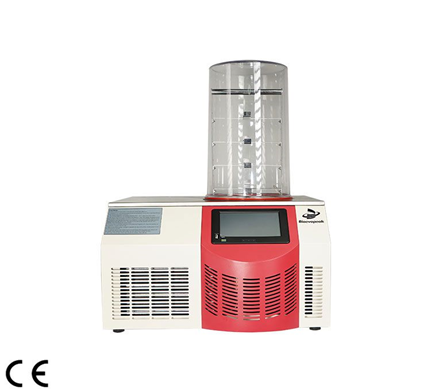

Benchtop Freeze Dryer, LYO60B-1S
1) 7’’ colorful touch panel can display the product sample’s temperature,cold trap temperature and vacuum etc in digital and curve.
2) 2.Touch panel with the design conforms to ergonomics and operate more comfortably.
3) 3.Optional for gas interface: can inject inert gas.
4) 4.Optional for cold trap electrical heating defrost function.
5) 5.Optional for rack heating which is help to test in production.
6) Eutectic point testing, it can have sublimation temperature.
Description
| Model | LYO60B-1S | LYO60B-1T | LYO60B-1P | LYO60B-1PT |
| Type | Standard | Stoppering | Standard | standard |
| chamber | chamber | chamber with | stoppering | |
| 8port manifold | chamber with | |||
| 8port manifold | ||||
| Final condenser temp (℃) | -60 | |||
| Vacuum Degree(Pa) | <10 | |||
| Condenser volume (L) | 6.5 | |||
| Freeze drying area(m2) | 0.12 | 0.09 | 0.12 | 0.09 |
| Material tray dimension(ф*h mm) | 200*20 | |||
| Ice condenser capacity (Kg/24h) | 3 | |||
| Qty of shelf | 4 | 3 | 4 | 3 |
| Material loading capacity/ shelf (ml) | 300 | |||
| Material loading capacity(ml) | 1200 | 900 | 1200 | 900 |
| Freeze drying time( h) | 24 | 24 | 24 | 24 |
| Manifold | / | / | 8 pieces | 8 pieces |
| USB Interface | Y | Y | Y | Y |
| Drying Chamber(standard) | transparent acrylic | |||
| Vacuum Pump | Speed: 2L/s | |||
| Control System | microprocessor, large touch screen | |||
| Power supply (MHz) | 220/50Hz/60Hz | |||
| Exterior dimension(W*D*H mm) | 582*541*374/684 | |||
| Penicillin bottle Φ22 | 260 | 195 | ||
| Penicillin bottleΦ16 | 480 | 360 | ||
| Penicillin bottleΦ12 | 920 | 690 | ||
