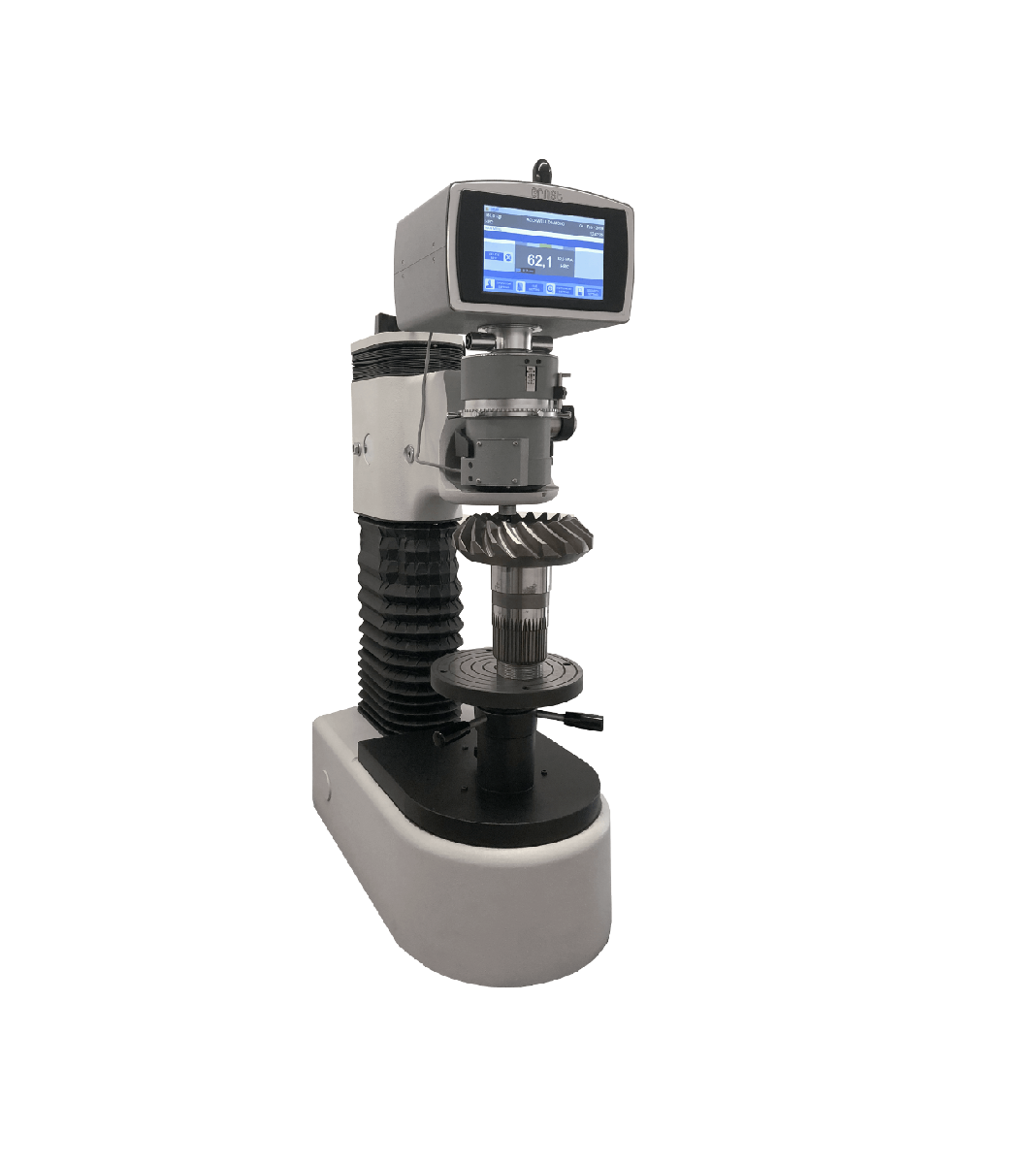

Bench hardness tester AT250
Enhanced version of the AT130 model with advanced electronics and the most up-to-date communication systems.
A real innovation in the Rockwell tester testing field, with thousands of units sold throughout the world from the early 70’s, due to its fast test cycle and the ability to test bulky items with the unique clamping system for overhanging pieces and the absolute insensibility to bending and deflection.
Description
| Power supply | Autosetting 100VAC – 240VAC |
| Loads | MOD DR: 60kgf, 62.5kgf, 100kgf, 125kgf, 150kgf, 187,5kgf (588N, 613N, 981N, 1226N, 1471N, 1839N) MOD DSR: 10kgf, 15kgf, 15.6kgf, 30kgf, 31.2kgf, 45kgf (98N, 147N, 153N, 294N, 306N, 441N) |
| Norms and certifications | Rockwell – ASTM E-18 – ISO6508 |
| Minimum measurable diameter | 4mm (indenter 048 + gruppo 022) |
| Overall dimensions | AT250NX 30cm x 60cm x h73cm AT250TX 30cm x 60cm x h95cm AT250CAR 95cm x 33cm x h133cm AT250MUR 30cm x 70cm x h110cm |
| Working area dimensions | STAND TX: max. measurable height: 240mm (400mm w/o elevating srew) Depth: 225mm STAND NX: max. measurable height: 210mm Depth: 240mm |
| Selectable functions | scale selection | load time | minimum thickness | mm/inch | round correction | calibration | calibration language | date/time | tolerances | type of indenter | file | measurement archive | printouts | statistics | icons | conversions | sequence | passw |
| Output interfaces | USB Printer – USB export on USB drive OPTIONAL: RS232 – RS485 – Profibus – Ethernet MODBUS-TCP – Bluetooth |
| Reading | On colour touch-screen display 800px x 480px |
| Languages | Italian, English, German, Other languages on request |
| Memory | 400 files with 2500 storable values for every file |
| Load application method | Manual |
| Weight | AT250NX 95kg AT250TX 125kg AT250CAR 165kg AT250MUR 115kg |
| Preload | MOD DR: 10kgf (98.1N) MOD DSR:: 3kgf |
| Working principle | MOD DR: Rockwell MOD DSR: Superficial Rockwell |
| Standard scales | MOD DR: Rockwell: HRA, HRB, HRC, HRD, HRF, HRG Brinell: HB10 HB30 other scales on request MOD DSR: Rockwell: HR15N, HR30N, HR45N, HR15T, HR30T, HR45T other scales on request |
