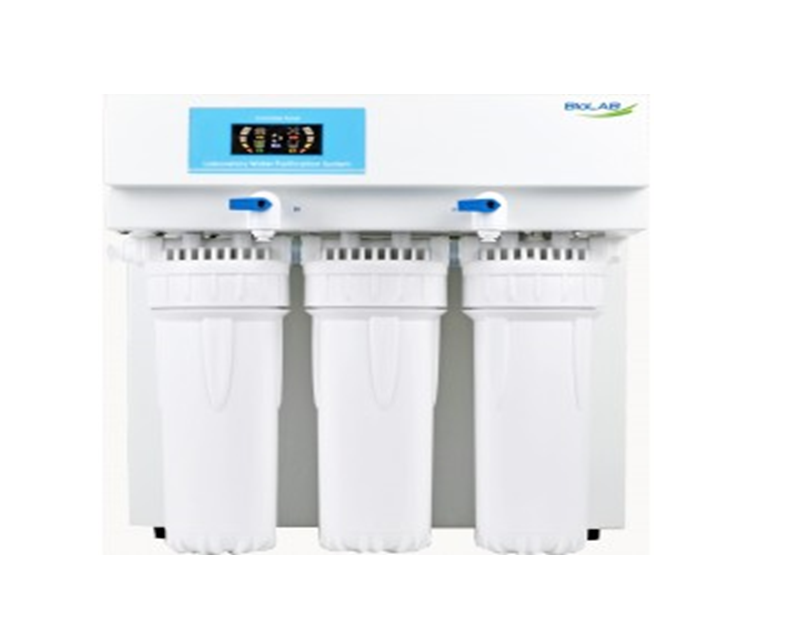

Basic Water Purification System
Description
| Feed Water Requirements*: | |
| Water Inlet | Tap water: TDS<200 ppm (Extra pretreatment filter is recommended, if TDS>200 ppm) |
| Temperature | 5-45°C |
| Pressure | 1.0-4.0 Kgf/cm² |
| Flow Procedure** | PF+AC+RO+AC |
| Ion rejection rate | 96%-99% (New RO membrane) |
| Organic rejection rate | >99% (when MW>200 Dalton) |
| Particles and bacteria rejection rate | >99% |
| Output(25°C)**** | 15 L/hrs |
| Pure water outlet | RO water |
| DimensionLxWxH | 410×320×420 mm |
| Weight | 15 kg |
| Standard configuration | Main body (Including 1 set of cartridges) + TDS pen+ accessory bag |
| Power Consumption (W) | 72 W |
| Power Supply | AC110-220 V, 50/60 Hz |
| Note | *The feed water quality will influence the pure water´s quality and cartridges´ life-span. **PF:polypropylene spun fiber, AC:active carbon, RO:reverse osmosis, DI:ion exchange. ***All the specifications are tested under the situation:feed water´s TDS=200ppm, 25°C, 50psi and 15% recovery rate. |
| Other related models | |
| • Basic Water Purification System BBPS-102 • Basic water purification system BBPS-103 • Basic water purification system BBPS-104 • Basic water purification system BBPS-105 • Basic water purification system BBPS-106 • Basic water purification system BBPS-107 • Basic water purification system BBPS-108 • Basic water purification system BBPS-109 • Basic water purification system BBPS-110 • Basic Water Purification System BBPS-111 • Basic Water Purification System BBPS-201 • Basic Water Purification System BBPS-202 • Basic Water Purification System BBPS-203 • Basic Water Purification System BBPS-204 • Basic Water Purification System BBPS-301 • Basic Water Purification System BBPS-302 • Basic Water Purification System BBPS-401 • Basic Water Purification System BBPS-402 • Basic water purification system BBPS-403 • Basic water purification system BBPS-404 • Basic Water Purification System BBPS-501 • Basic Water Purification System BBPS-502 • Basic water purification system BBPS-503 • Basic Water Purification System BBPS-504 • Basic Water Purification System BBPS-505 • Basic water purification system BBPS-506 • Basic water purification system BBPS-507 • Basic Water Purification System BBPS-508 |
|
| ü Automatic microcomputer controlling system, LED real-time animation mode display. ü Running status is showed in the LED, such as flushing, producing water, full tank, water shortage, leakage and service. ü Power on self test, power reset, alarm when work more than 6 hours continuously, water shortage, leakage, low pressure and high pressure. |
