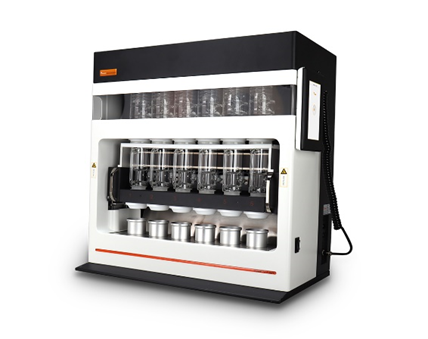

Automatic Soxhlet Extractor – SOX606
SOX606 Automatic Soxhlet Extractor, designed based on the Soxhlet extraction principle with weight method to determine the fat content. It has five extraction methods to meet different demands from the customer. The whole metal heating module, heating up fast, good effect, low power consumption; access to all-round water temperature, flow control, environmental protection more economical; built-in ether leak detection device to ensure experimental safety.
Description
| Temperature range | Room temperature +5℃～ 300℃ |
| Measuring range | 0.1 ～ 100% |
| Temperature accuracy | ±1℃ |
| Reproducibility | Relative error 1% |
| Sample weight | 0.5 ～ 15g |
| Capacity per batch | 6pcs/batch |
| Solvent cup volume | 150mL |
| Solvent recovery | ≥85% |
| Controller | External via cable |
| Power supply | 220VAC±10%, 50Hz |
| Display | 7 inches color touch screen |
| Power | 2.6KW |
| Dimensions | 650mm×380mm×720mm |
| Net Weight | 50Kg |
