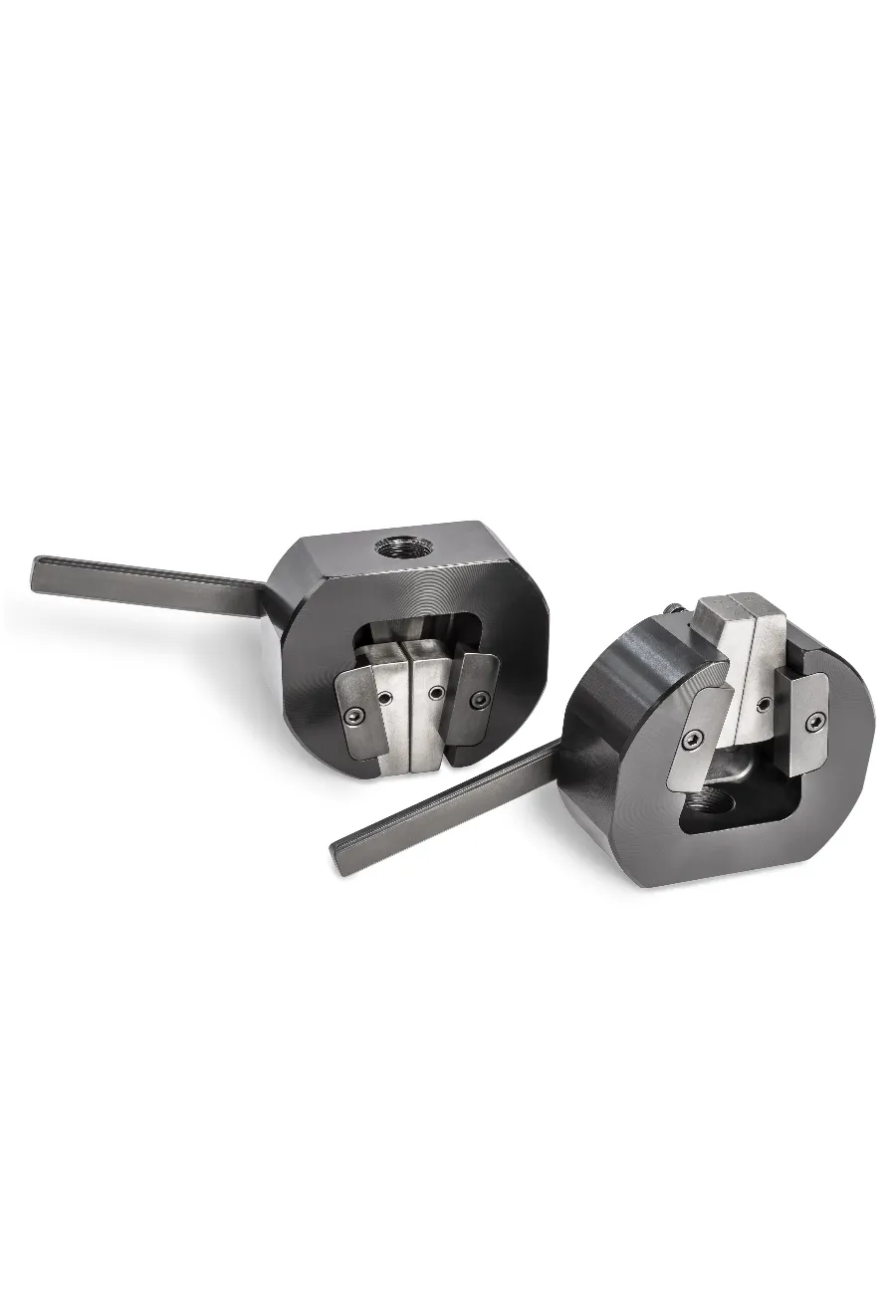

A-20 Wedge Grips
The A-20, lever action wedge grips are ideal for tensile testing flat or round samples.
SKU: A-20 Wedge Grips
Brand: United Testing
Applications: Materials Testing, Tensile Testing
Industries: Aerospace, Automotive, Beverage, Construction & Civil Engineering, Defense, Education, Electronics, Flexible Packaging, Industrial, Pharmaceutical, Plastics and polymers, Technology
Materials: Adhesive, Aluminum, Composites, Elastomers, Film, Foam, Metals, Plastics and Polymers, Rubber, Steel, Textile, Timber, Wood
Lever Action wedge grips are used for medium to high capacity tensile testing applications.
The A-series family of products consist of several models including A-01-2.5KN, A-01-20KN, A-20, A-30 and A-60 models
Models are selected based on capacity requirements, sample width or diamater.
A-20 Grips:
Max Capacity: 150 kN
Jaw Width: 1″ (25 mm)
Max Jaw Opening: 3/4″ (19 mm)
Jaw inserts are selected based on sample dimensions (width and thickness) and shape (flat or round).
A-20W grips open wider and can test flat samples up to 1.5″ (38 mm) and round samples up to 1″ (25 mm).
Description
Part Number: A-20
Spec : Set of two grip bodies with 1 inch Wide Jaw Faces
Capacity (kN): 150
Capacity (Lbf): 33,000
Inserts : Available Separately
Inserts required: based on sample thickness or diameter
Flat Inserts: A-20-6, A-20-7
Round Inserts: A-20-8, A-20-9, A-20-10, A-20-11
