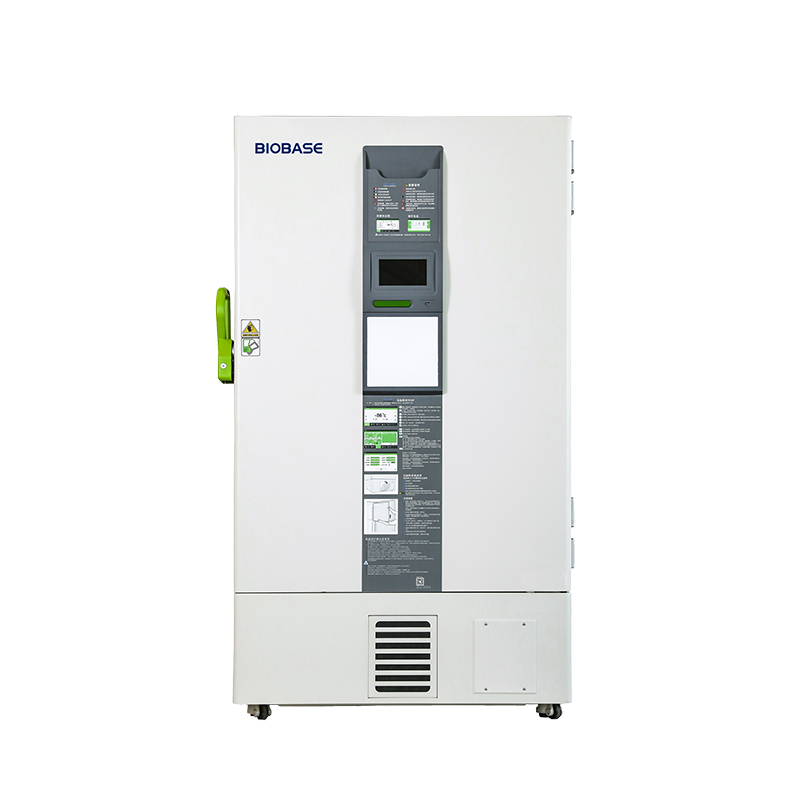

838l 728l 588l -86℃ Ultra-low Temperature Medical Cryogenic Refrigerator Vaccine Ult Freezer
Brand BIOBASE
Product origin CHINA
Delivery time Within 7 days
Supply capacity Factory Direct Supply
Deep freezer manual series products are applied to places needing storage at constant temperature, such as hospitals, epidemic prevention stations, blood banks, scientific research institutions, colleges and universities, biological pharmacies, genetic engineering, entrepreneurs, etc.
Description
| Model | BDF-86V588 | BDF-86V728 | BDF-86V838 | |
| External Size(W*D*H)mm Internal Size(W*D*H)mm Capacity |
880*1080*2000606*7381310
588L |
1260*890″2010963*558*1350
728L |
1175*1075*1990894*718*1310
838L |
|
| Type Temp.Range Temp.Accuracy |
Vertical -40℃~-86℃ 0.1℃ |
|||
| Control System | Microprocessor control,LCD touch screen | Microprocessor control, LED Digital Display |
||
| Audible and Visual Alarm
Refrigeration type |
High and low temperature,Sensor failure,Door ajar,Power failure,Voltage abnormal, Ambient temperature abnormal,Low voltage,Filter blocking Direct refrigeration |
|||
| Refrigerant Compressor Condenser&Evaporator |
R290 and R170 2 sets Made of copper |
|||
| Construction | Structure | 150mm ultra-thick foam layer | 100mm ultra-thick foam layer | 150mm ultra-thick foam layer |
| lnternal Material | ss 304 | |||
| External Material | Sprayed steel plate | |||
| Door Caster |
Lockable door 4casters |
|||
| Chamber with Inner Door Shelf |
23 pcs | |||
| Temp.Test Port Consumption |
1, φ25mm 815W |
1, φ25mm 935w |
1, φ25mm 1700w |
|
| Power Supply Standard Accessory |
AC110V/220V+10%，50/60Hz 72 hours battery backup for power failure alarm,USB port |
|||
| Max.Optional Storage Racks
Max. Optional Boxes Gross Weight |
16*LD5×5400
975*1140*2200 368kg |
24*LD5×4 480 1320*970*2190 401.5kg |
18*LD7×5 630 1270*1100*2185 430kg |
|
