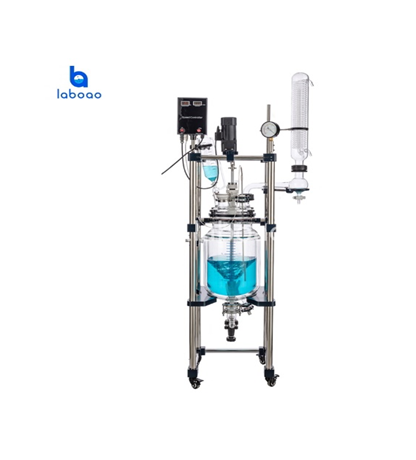

50L Lifting Three Layer Glass Reactor
An extra layer of glass vacuum protection layer is added on the basis of the double-layer glass reactor, so as to better protect the temperature in the kettle, and at the same time, you can intuitively observe the reaction of the materials in the kettle.
Description
| Model | LGR-50ST | |
| Capacity of kettle body | 50L inner diameter 365mm middle layer 410mm outer diameter 465 inner length 576mm | |
| Inner mezzanine capacity | 16L | |
| Voltage frequency | 220V/50Hz | |
| Total power | 160W | |
| Stirring motor power | 120W | |
| Lifting motor power | 40W | |
| Stirring speed | 0-450rpm/ min | |
| Temperature range of kettle body | 80℃~+250℃ | |
| Temperature measurement accuracy | ±1℃ | |
| Vacuum | 0.098Mpa | |
| Kettle cover 265mm | Stirring port | Φ50mm threaded mouth |
| Six ports (full PTFE cover) | Condensate return port | 50#Ball mill mouth |
| Constant pressure funnel mouth | 40# standard mouth | |
| Decompression port | 34#Standard mouth | |
| Temperature measurement port | 24# standard mouth | |
| Solid feeding port | Φ80mm threaded port, inner diameter 50#mm | |
| Mixer | Φ17×1000H(mm) Leaf spread 190mm | |
| Condenser size | 120*600H(mm) Lower Φ60 flange mouth | |
| Condensation area | 0.5 m2 | |
| Return elbow | Upper 60 flange mouth left 50# ball mill plug | |
| Constant pressure funnel | 2L Upper 29# standard port with glass stopper | |
| Under 40# standard plug | ||
| Equipped with 40# standard mouth×40# standard plug | ||
| S-type adapter is connected to the kettle cover | ||
| Pressure reducing valve | 34# standard plug valve vent nozzle (joint) outer diameter 12mm | |
| Inner mezzanine inlet and outlet circulation | Φ45mm flange port supporting 6 points buffer device, external interface 4 points wire port | |
| Outer sandwich vacuum port | Φ35 mm flange port supporting glass + PTFE exhaust valve | |
| Exhaust nozzle (joint) outer diameter 12mm | ||
| Discharge port | Φ75mm flange Φ33mm discharge hole Oblique discharge port (joint) Φ34mm 280mm from the ground | |
| Vacuum exhaust nozzle | Joint outer diameter 12mm | |
| Condensing coil in and out of circulation nozzle | Connector outer diameter 15mm | |
| Host lift stroke | 740mm (Actually, the stirring rod is 50mm away from the lid of the kettle) | |
| Dimensions (W × D × H) | 900×1000×2950mm | |
| Package Size | 2430×670×1130mm | |
