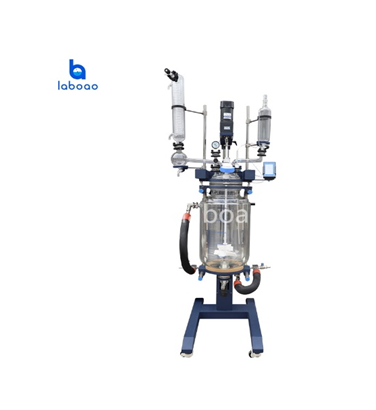

50L Jacketed Glass Reactor With Lifting And Rotation
Is a commonly used biochemical instrument. It is widely used in modern fine chemical, bio-pharmaceutical, scientific research and other industries. It can be concentrated, distilled, refluxed, separated and purified under constant speed, constant force and constant temperature. The reaction is the ideal instrument for teaching, experiment, pilot test and production.
Description
| Model | LGR-50S |
| Reaction capacity | 50L |
| Jacketed volume | 12L |
| Glass material | GG-17 high borosilicate glass |
| Speed | 0-450rpm |
| Lifting distance | 750mm |
| Stirring power | 120W 3/1 |
| Lifting power | 90W |
| Constant pressure funnal volume | 2000ml |
| Port number of reactor cover | 6 pieces |
| Reaction temperature of reactor | -80 to 250°C |
| Vacuum | 0.098Mpa |
| Diameter of stir rod | 15mm |
| Distance from discharge to floor | 730mm |
| Voltage | 220V 50HZ |
