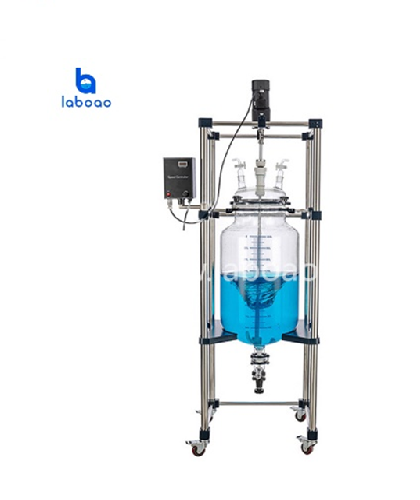

50L 100L Glass Liquid Separator
According to the actual needs of the majority of biopharmaceutical development companies, the glass dispenser is an improved by-product developed on the basis of the existing single-layer glass reactor. It is mainly used for liquid-liquid extraction and can also be used for reactions at room temperature.
Description
| Model | LFY-50L | LFY-100L |
| Capacity | 50L cylinder type φ365mm inner length 576mm | 100L cylinder type φ465mm inner length 696mm |
| Voltage frequency | 220V/50Hz | 220V/50Hz |
| Motor Power | 120W 1/3 | 200W 1/3 |
| Rotating speed | 0-450rpm/min | |
| Kettle body | φ470mm four ports | φ340mm four ports |
| Stirring port | φ80mm flange mouth | |
| Feeding port | 34# standard port | |
| Decompression port | 34# standard port | |
| Lower discharge port | φ80mm flange mouth | |
| Mixer | φ17*900H(mm) Leaf spread 190mm | φ17*1200H(mm) Leaf spread 240mm |
| Feeding valve | 34# standard plug valve feeding nozzle (pagoda joint) outer diameter 12mm | |
| Pressure reducing valve | 34# standard plug valve vent nozzle (pagoda joint) outer diameter 12mm | |
| Discharge port | φ80mm flange φ33mm discharge hole Oblique discharge port (pagoda joint) φ34mm 350mm from the ground | |
| The whole machine occupies space size | 720*600*1800mm | 750*800*2100mm |
| Machine net weight | 51KG | 67KG |
| Package Size | 1680*620*650mm wooden box 0.68m³ | 1920*720*760mm wooden box 1.06m³ |
| Package weight | 82KG | 115KG |
.
