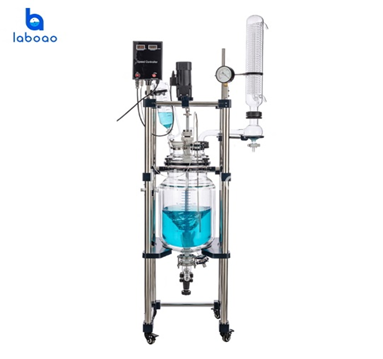

20L jacketed glass reactor
Is with double glass design, the reaction kettle placed with reaction menstruum can do the mixing reaction, and the interlayer can be added with different cold and heat sources (frozen liquid, hot water or hot oil) to do loop heating or cooling reaction.
Description
| Model | LGR-20L |
| Glass Material | GG-17 |
| Frame Material | 304 Stainless steel |
| Moving mode | Brake type universal corner wheel |
| Reaction bottle capacity | 20L |
| Jacketed Capacity | 8L |
| Flanged out of the oil circulation port | Low feed high outlet |
| Reaction bottle cover port | 6ports |
| Discharge port distance to ground | 450mm |
| Temp. range | -80-250°C |
| Vacuum | 0.098Mpa |
| Stirring speed | 0-450rpm |
| Stirring diameter | 12mm |
| Stirring power | 90W |
| Voltage(V/Hz) | 220V/50Hz |
| Dimension(mm) | 560*560*2100 |
| Packing size(mm) | 1480*660*810 |
| Packing weight（KG） | 80 |
| Other reated models | |
| • 50L jacketed glass reactor • LGR-50L • 100L jacketed glass reactor • LGR-100L |
|
