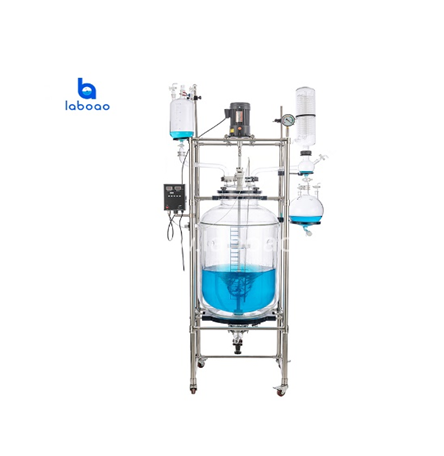

200L Jacketed Glass Reactor
High borosilicate glass reactor vessels with bottom valve Glass dome with ports for inlet, solid feed, vacuum, etc. PTFE coated stirrer, mechanical seal Adjustable speed stirrer drive CE and ISO certificate.
Description
Model | LGR-200L |
Glass Material | GG-17 |
Frame Material | 304 Stainless steel |
Moving mode | Brake type universal corner wheel |
Reaction bottle capacity | 200L |
Jacketed Capacity | 28L |
Flanged out of the oil circulation port | Low feed high outlet |
Reaction bottle cover port | 6ports |
Discharge port distance to ground | 450mm |
Temp. range | -80-250°C |
Vacuum | 0.098Mpa |
Stirring speed | 0-280rpm |
Stirring diameter | 15mm |
Stirring power | 750W |
Voltage(V/Hz) | 220V/50HZ |
Dimension(mm) | 1300*900*2400 |
Packing size(mm) | 2300*930*1350 |
Packing weight(KG) | 190 |
