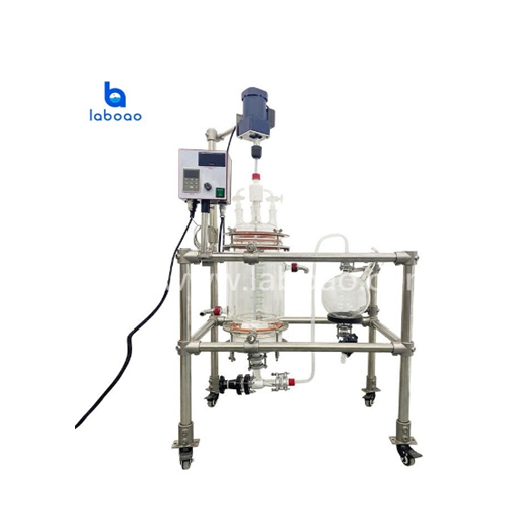

1L-5L Jacketed Glass Crystallization Filter Reactor
Is vacuum filtered, and can also be used for concentration, distillation, extraction, crystallization and other reactions. It is commonly used in biopharmaceuticals, peptide synthesis, scientific research experiments, and is an ideal instrument for small-scale and pilot-scale production.
Description
| Model | LCR-1L | LCR-2L | LCR-3L | LCR-5L |
| Capacity | 1L | 2L | 3L | 5L |
| Number of lid openings | 6(stir port, temperature measure port, liquid port, solid port, vacuum port, spare port) | |||
| PTFE mixing paddle | Single layer push type | |||
| Motor speed | 0-400rpm | |||
| Speed mode | Frequency | |||
| temperature display | Digital Display | |||
| Discharge valve | PTFE core three-way valve can pass hydrogen | |||
| Filter chassis | Removable PTFE body | |||
| Filter plate | Imported material PTFE core | |||
| Filter diameter | 95mm | 159mm | ||
| Sand core aperture | 40-60μm option | |||
| Liquid feed valve | PTFE three-way valve | |||
| Sealing method | Self-lubricating mechanical seal | |||
| Use environment temperature | 5℃~40℃ | |||
| Voltage | 220V/50Hz (can be customized) | |||
| Optional | 1. Spray device(2 can be used to clean the sign body without dead angle at 360° through negative pressure) | |||
| 2. Explosion-proof motors | ||||
| 3. Explosion-proof inverter | ||||
.
