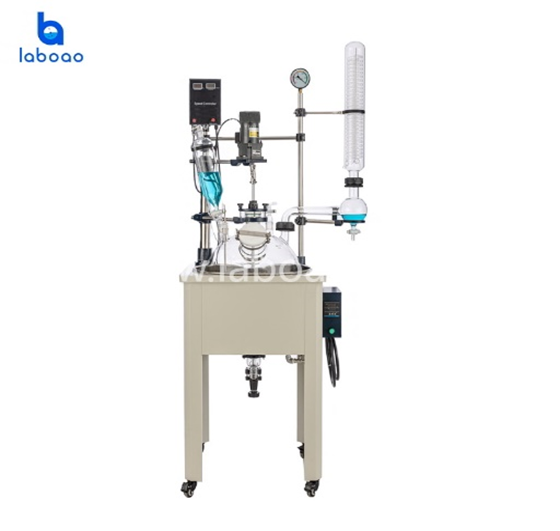

10L Single Layer Glass Reactor
Is an equipment which is a collaboration of vacuum state, distillation, reflux, stirring, oil/water heating, heating mantle. It can do all kinds of biochemical reactions and synthesis reactions at a constant temperature condition. It is also a colsed system on the whole.
Description
| Basic specification | Name | Single layer glass reactor |
| Model | LGR-10F | |
| Volume | 10L | |
| Glass material | GG-17 | |
| pot shell material | Spraying antiseptic shell | |
| Pot shell size(mm) | 540*440*860 | |
| Inner port material | Stainless steel | |
| Inner port size(mm) | 350*220 | |
| Moving mode | Brake type universal corner wheel | |
| Shape of reactor body | Ball type | |
| Port No. of reactor cover | 7 | |
| Distance between discharge to floor | 450mm | |
| Temperature range | -80 to 250 degree | |
| Vacuum | 0.098Mpa | |
| Stirring speed | 0-450rpm | |
| Stir rod diameter | 15mm | |
| Stir motor | 90W1/3 | |
| Heating power | 3KW | |
| Overall size (mm*mm*mm) | 600*440*1900 | |
| Package size (mm*mm*mm) | 1100*620*790 | |
| Gross weight（KG） | 63 | |
| Configuration list | Motor | Low speed booster motor, speed ratio 3: 1 |
| Speed display mode | LCD digital display | |
| Temperature display | digital display | |
| Seal | ￠70 flange stir port | |
| Condenser | 100*600mm | |
| Reflux (distillation) device | Return bend with feeding switch, 50# ball mill port | |
| Drop adding device | 1L /34 standard | |
| Pressure release device | standard 34# pressure release valve | |
| Temperature tube | standard 24# | |
| Solid adding (cleaning) port | ￠120 flange port with PTFE cover | |
| Discharge | glass discharge valve, ￠80 flange port | |
| Vacuum display mode | Vacuum gauge | |
| Mixing connection | universal joint link |
