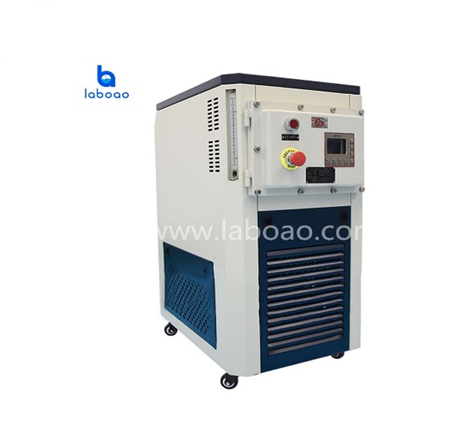

100L Explosion Proof Closed Heater Circulator Bath
Explosion-proof enclosed heating circulator LMGY-100EX is made of anti-corrosion stainless steel material, explosion-proof control box, electric heating liquid circulation equipment, high temperature circulation liquid, widely used in the heating of reactor devices in the pharmaceutical, chemical, petrochemical and other industries.
Description
| Model | LMGY-100EX | |
| Heating temperature | 200℃ | |
| Voltage frequency | 380V/50HZ(Can be customized) | |
| Operating temperature range | Room temperature～200℃ | |
| Ambient temperature | 5℃～40℃ | |
| Circulating pump | Power | 370W |
| Maximum flow | 42L/min | |
| Maximum pressure | 2.8bar | |
| Indenter | 22m | |
| Circulation port size | 3/4″ | |
| Filling amount of bath liquid | 35L | |
| Heating power | 9KW | |
| Overall size(L*W*H) | 720× 520×1130mm | |
| Optimal environmental humidity | ≤60% | |
| Explosion-proof control box; explosion-proof pump; explosion-proof connecting pipe; explosion-proof grade: dllBT4 | ||
.
