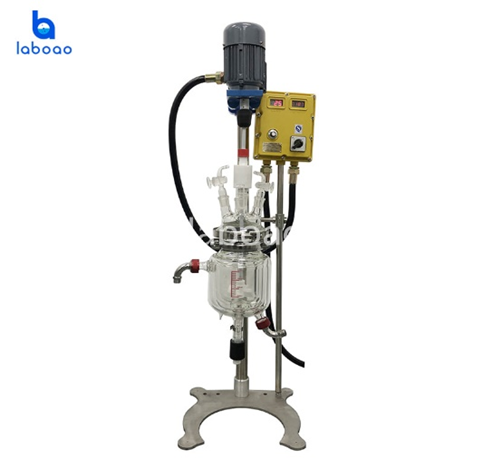

1-5L Explosion Proof Three Layer Jacketed Glass Reactor
The body of the three-layer glass reactor is composed of two sets of interlayers composed of three layers of glass, which can provide a stirring function and control the evaporation and reflux of the reaction solution.
Description
| Model | LGR-1T | LGR-2T | LGR-3T | LGR-5T |
| Volume | 1L | 2L | 3L | 5L |
| Outer diameter of kettle body | 150 | 180 | 200 | 230 |
| Outer diameter of kettle mouth | 150 | 150 | 150 | 180 |
| Motor Power | 90W | 60w | ||
| Rotating speed | 0-400rpm | |||
| Reaction bottle cover port | 5 ports | |||
| Body material | Three-layer glass, high borosilicate glass GG17, expansion coefficient 3.3 | |||
| PTFE stirring paddle | Single-layer push | |||
| Sealing method | Self-lubricating mechanical seal to prevent wear debris from falling off | |||
| Vacuum | -0.098Mpa | |||
| Reaction temperature of kettle body | -90~250℃ | |||
| Ambient temperature | 5~40℃ | |||
| Power | 220V 50HZ | |||
