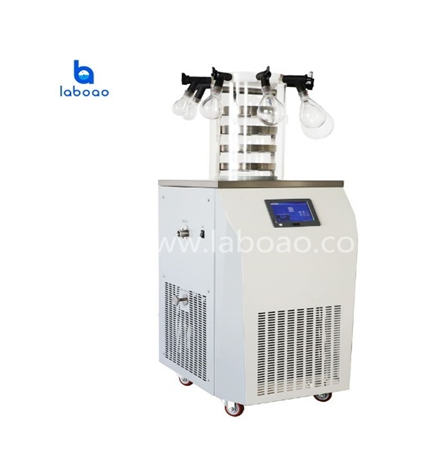

0.27㎡ Manifold Lab Freeze Dryer
Is suitable for freeze-drying experiment in laboratory. It is bench top manifold equipment.
Description
| Model | LFD-18C |
| freeze drying area | 0.18㎡/0.27㎡ |
| tray dia. | Ф240mm |
| tray numbers | 4pcs/6pcs |
| tray spacing | 70mm |
| flask capacity & q’ty | 100/250/500/1000ml，each 2pcs |
| cold trap temp. | ≤-60℃，optional ≤-80℃ |
| cold trap depth | 400mm |
| cold trap dia. | Ф270mm |
| ice collecting capacity | 6kg/24h |
| pump speed | 4L/S |
| ultimate vacuum | ≤5pa |
| power | 1400w |
| main unit weight | 105kg |
| main unit dimensions | 630×580×970mm |
| -80℃ main unit dimensions | 810×580×950mm |
| drying chamber dimensions | Ф300×465mm |
| cooling mode | wind cooled |
| defrosing mode | by air |
| shipping weight | 1.8L/2.7L（thickness 10mm） |
