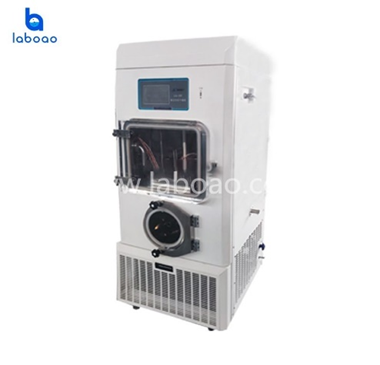

0.2㎡ top press pilot freeze dryer lyophilizer
Is not only suitable for the freeze drying of bulk (liquid, pasty, solid) conventional materials, but also suitable for the drying of the vials materials. When the materials are ready for freeze-drying, they are put into in the vial, then begin freeze drying before the vial’s lid unsealed. The capping device compacts the vials’ lids after freeze drying to prevent secondary pollution, re-adsorb water, and facilitate long-term storage.
Description
| freeze drying area | 0.2m2 |
| tray dimensions | 395×265mm |
| tray numbers | 2pcs |
| shelf dimensions | 400×270mm |
| shelf numbers | 2+1 pcs |
| shelf spacing | 70mm |
| shelf temp. range | -50℃~+70℃ |
| shelf temp. accuracy | ±1℃ |
| cold trap temp. | ≤-75℃ |
| ice collecting capacity | ≥6KG/24h |
| pumping speed | 4L/S |
| ultimate speed | ≤5pa |
| power | 3000w |
| main unit weight | 300kg |
| main unit dimensions | 840×750×1580mm |
| cooling mode | wind cooled |
| shipping weight | 2L（thickness 10mm） |
| vials capacity | Ф12mm：1554pcs |
| Ф16mm：868pcs | |
| Ф22mm：440pcs | |
