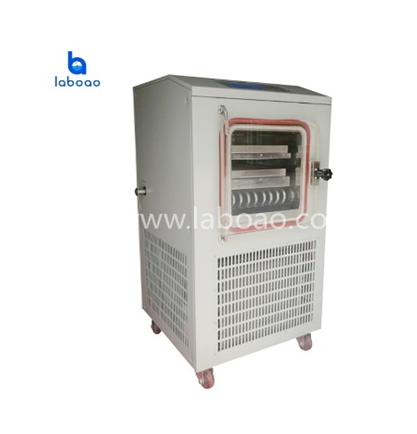

0.2㎡ electric heating in situ freeze dryer
Is Suitable for freeze drying of bulk (liquid, pasty, solid) conventional materials.
Description
| Model | LFD-10FA |
| Freeze-dried area | 0.2m2 |
| Shelf size | 400 × 270mm |
| Material plate size | 395 × 265mm |
| Number of material trays | 2pcs |
| Laminar spacing | 70mm |
| Shelf temperature range | -50 ° C ~ +70 ° C |
| Cold trap temperature | ≤ -60 ° C (no load), optional ≤ -80 ° C (no load) |
| Water catching capacity | ≥6KG/24h |
| Pumping rate | 4L/S |
| Ultimate vacuum | ≤ 5pa (no load) |
| Installed power | 2000w |
| Host weight | 210kg |
| Mainframe dimensions | 655 × 640 × 1200mm |
| Cooling method | air cooling |
| Plate loading material | 2L (material thickness 10mm) |
.
| Other related models | |
| • 0.4㎡ electric heating vacuum freeze dryer • LFD-30FD |
