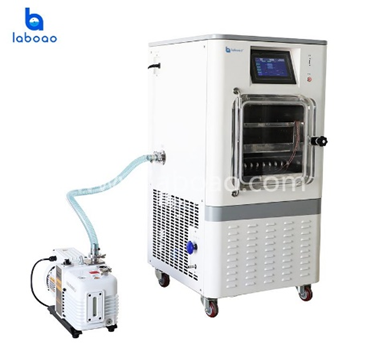

0.1㎡ Electric Heating Top Press Freeze Dryer
It is not only suitable for the freeze-drying of conventional materials in bulk (liquid, paste, solid), but also for the drying of the vials bottled materials. When preparing for lyophilization, the materials are dispensed into the vials as needed, and the caps are floated and frozen. Drying, after the end of drying, the capping device is pressed tightly to avoid secondary pollution, re-adsorb moisture, and easy to store for a long time.
Description
| Model | LFD-10FB |
| Freeze-dried area | 0.1m2 |
| Shelf size | 400 × 270mm |
| Material plate size | 395 × 265mm |
| Number of material trays | 1 |
| Laminar spacing | 70mm |
| Shelf temperature range | -50 ° C ~ +70 ° C |
| Cold trap temperature | ≤ -60 ° C (no load), optional ≤ -80 ° C (no load) |
| Water catching capacity | ≥6KG/24h |
| Pumping rate | 4L/S |
| Ultimate vacuum | ≤ 5 (no load) |
| Installed power | 2000w |
| Host weight | 210kg |
| Mainframe dimensions | 655 × 640 × 1200mm |
| Cooling method | air cooling |
| Plate loading material | 1L (material thickness 10mm) |
| Vials bottle Ф 12mm | 777 |
| Vials bottle Ф 16mm | 434 |
| Vials bottle Ф 22mm | 220 |
| Other related models | |
| • 0.3㎡ top press silicone oil heating lyophilizer • LFD-30FB • 0.5㎡ top press silicone oil heating lyophilizer • LFD-50FB • 0.5㎡ stainless steel top press lyophilizer • LFD-50FS • 1㎡ top press silicone oil heating lyophilizer • LFD-100FB • 2㎡ silicone oil heating lyophilizer • LFD-200F |
|
